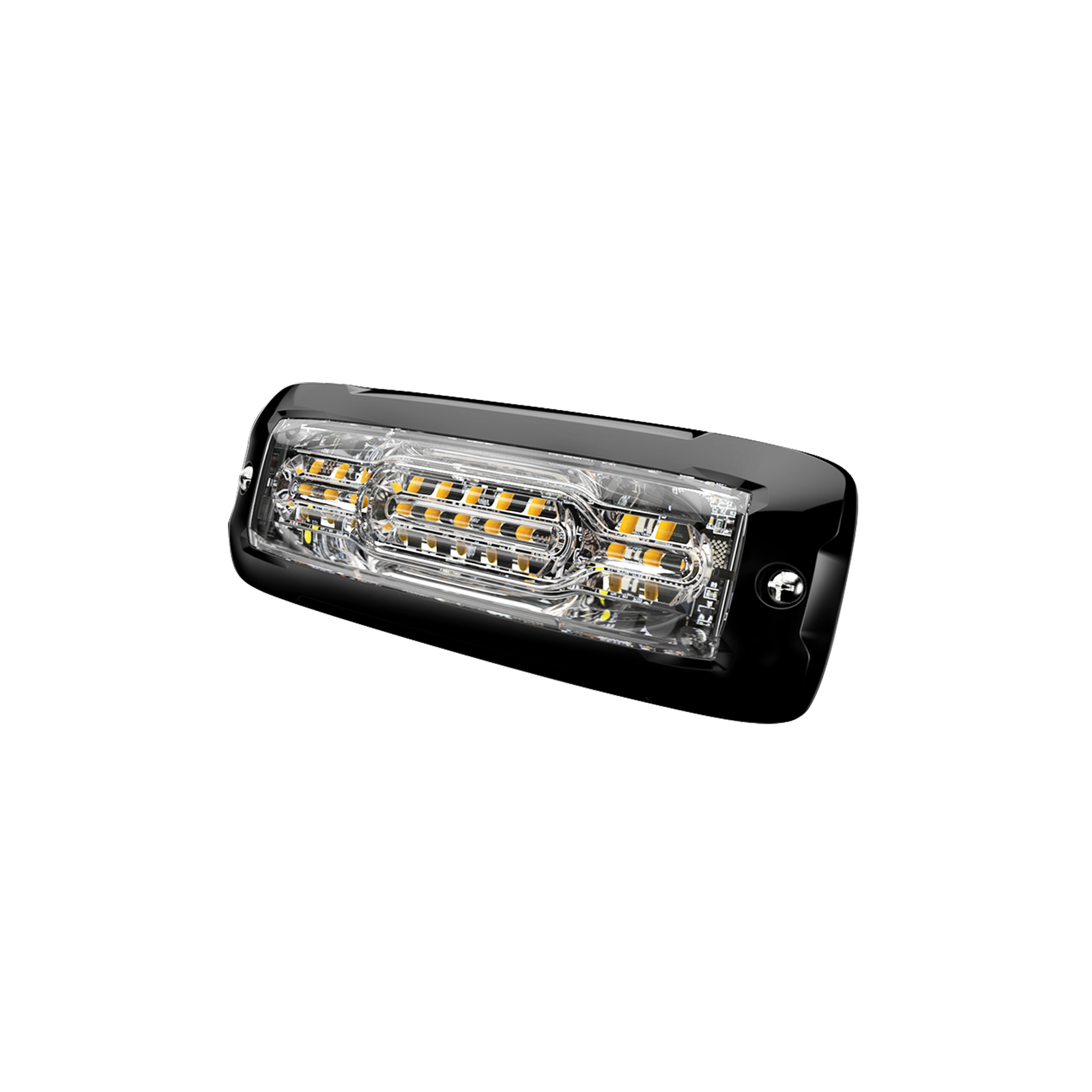

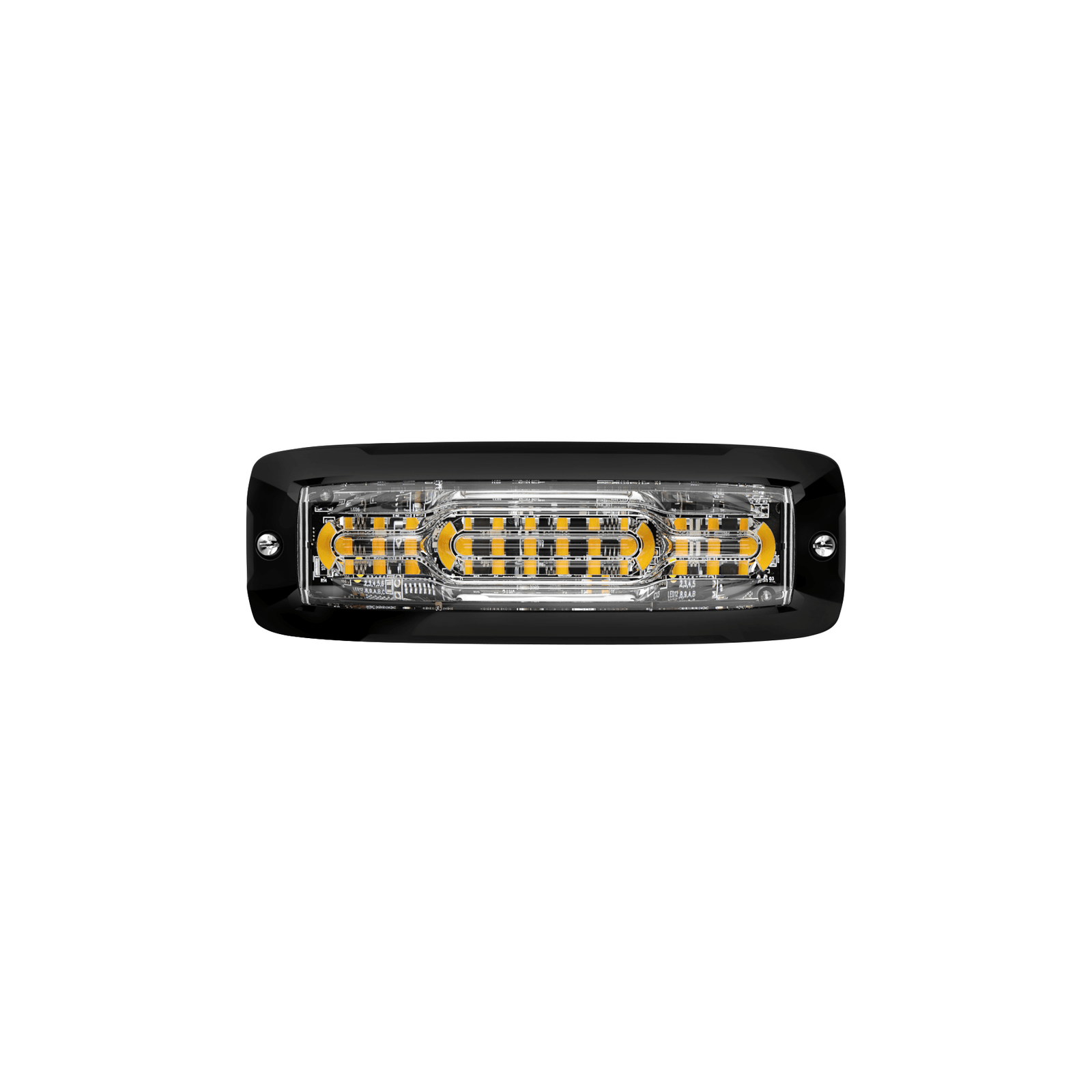

Name: MaxP XT12
SKU: 9212
Availability: OutOfStock

Details

New Generation Xtreme optic for wide angle visual and classic aesthetics.
12LED Single colour or 6+6LED Dual colour option.
3 Independently controlled warning memories for 3 pre-selected flash pattern and colour mode.
Steady-burn pattern for scene / flood light.
SAE and ECE R65 certified high power output.
ECE R10 EMC Compliance.

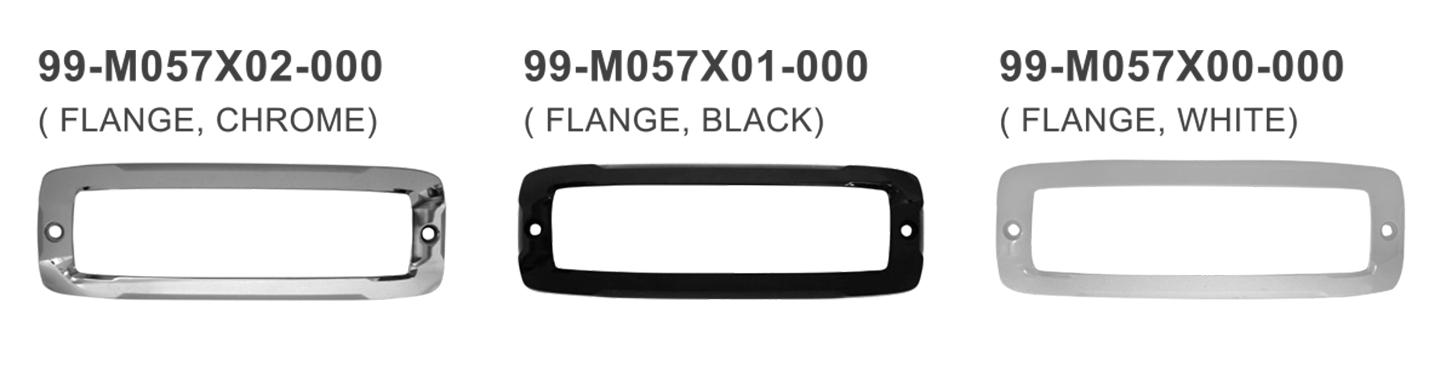

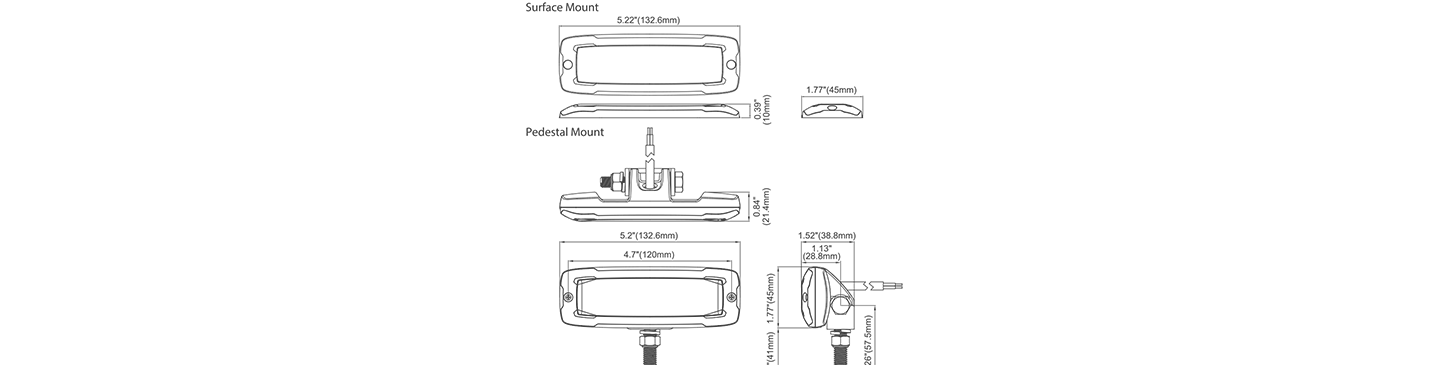

Available in Surface or Pedestal Mount.
0.39″ (10mm) Super low-profile thickness.
Long life LEDs rated to 100,000 hours of operation.
Non-volatile memory recalls last flash pattern used at power up.
Multi-units synchronization in simultaneous or alternating flash.
Reverse polarity protection.
Weatherproof and vibration resistant design for internal or external use.
Aluminium base for efficient heat dissipation.
Clear or Colour Lens options.

Additional information

LED Color	RED, BLUE, AMBER, WHITE, GREEN, BLUE/AMBER, RED/BLUE, RED/WHITE, AMBER/WHITE, AMBER/GREEN
Lens Color	Clear, Amber

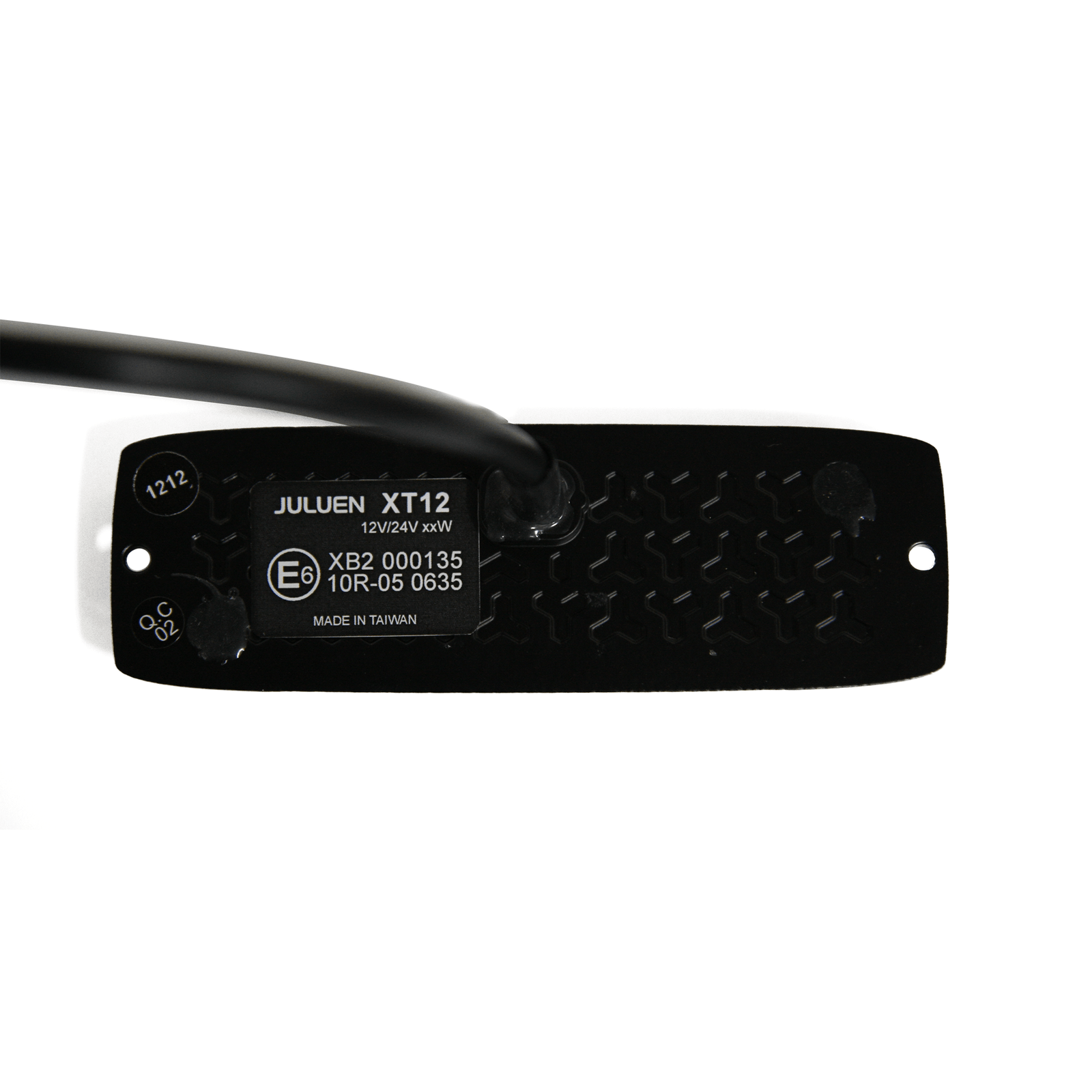

Compliance:	SAE J595 Class1 CA13 Class B (R/A/B): ECE R65 (XA1, XB1, XR1); ECE R65 (XA2, XB2, XR2) 12LED Single Colour only; ECE R10; IPX8
LED Elements:	High-power LED x 12pcs

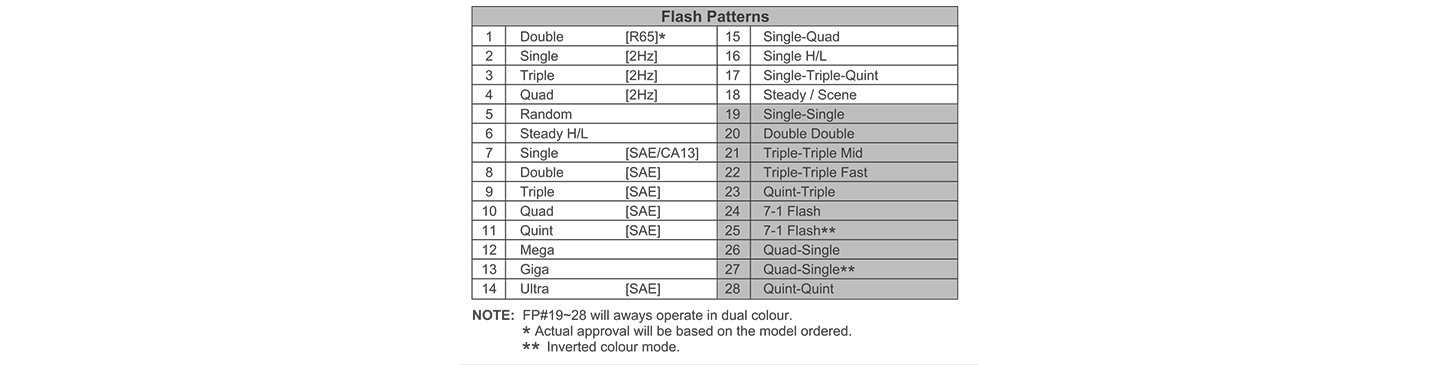

No. of Warning Patterns:	16 or 26 (depends on model)
Operating Voltage:	12-24VDC Average Current: 0.8A @12VDC/0.4A @24VDC (varies with flash pattern)
Max Current:	1.6A @12VDC/0.8A @24VDC
Max. Power:	19,2 Watts Wires: Red-Vcc (20AWG) Black-GND (20AWG) White-Low Power (20AWG) Yellow-Sync & Functions (20AWG) Cable Length: Surface Mount-10.4″ (265mm) Pedestal Mount-43.3″ (1100mm) Fuse Rating:2A
