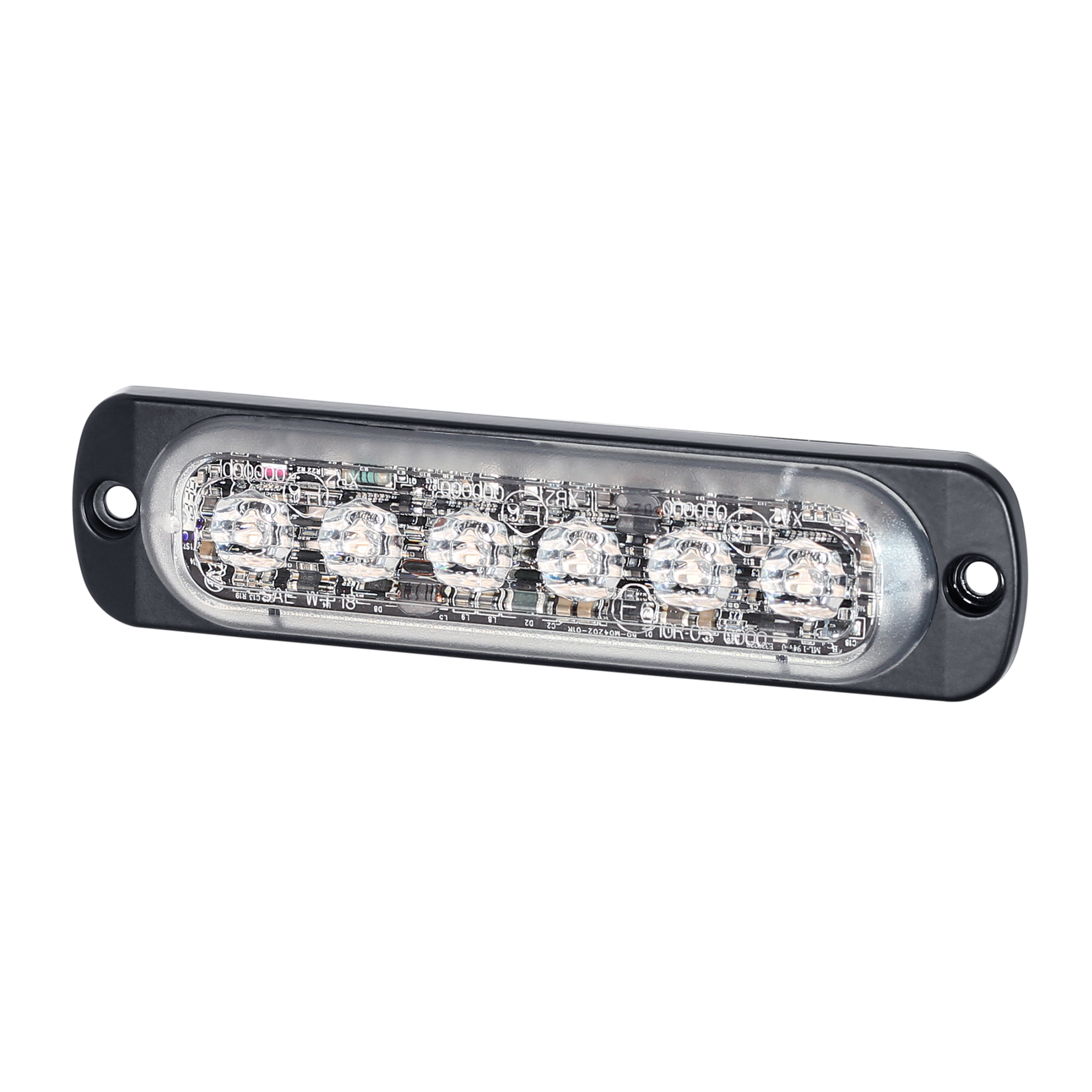

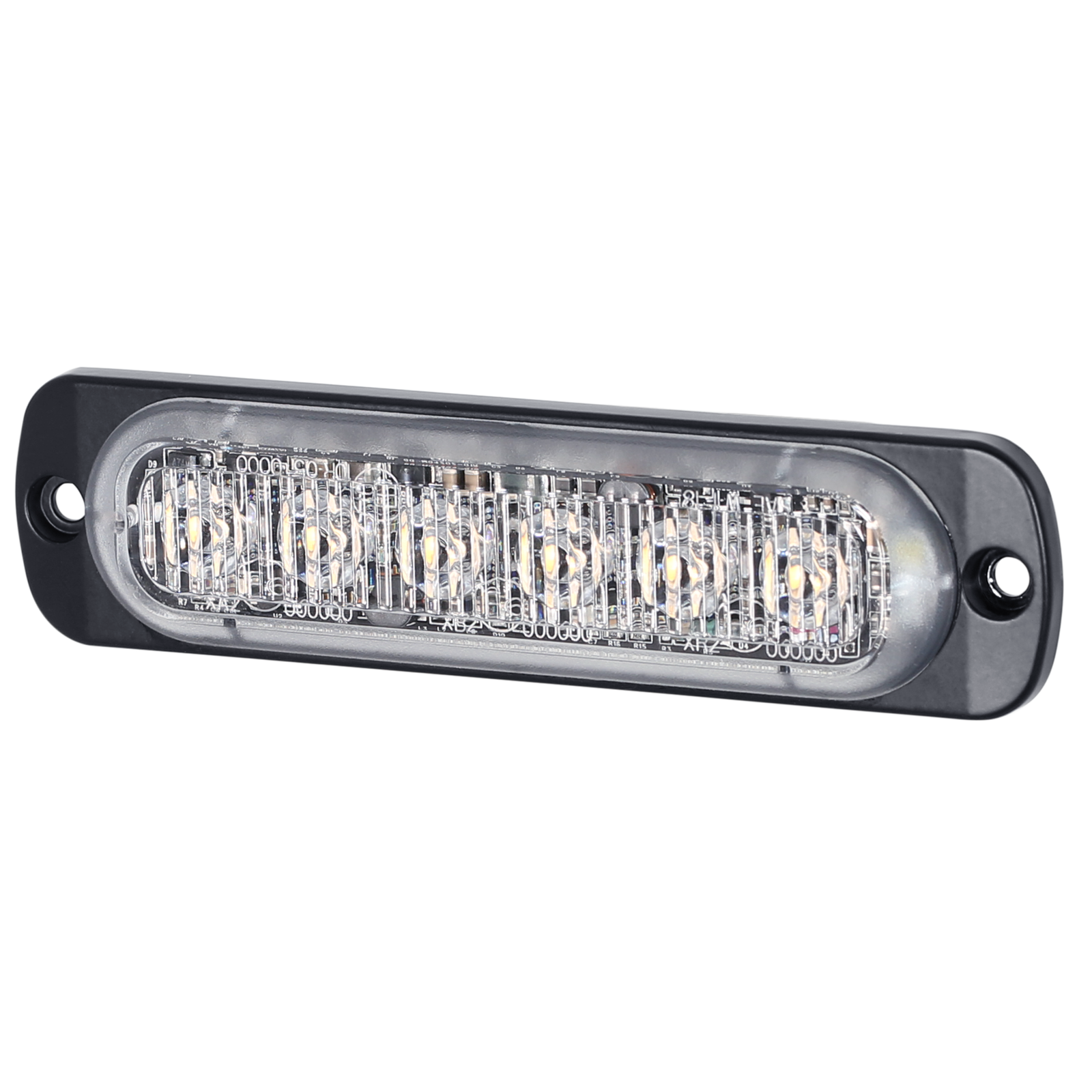

MaxP ST6

Certifications & Standards
• ECE R65 XA2 / XB2 / XR2
• ECE R65 HTB2
• ECE R10
• SAE J595 Class 1
• CISPR 25
Color Options
• LED Colors: Red, Blue, Green,Amber, White
• Lens Colors: Clear, Smoked

This product is currently out of stock and unavailable.

Details

  • Built-in Ambient Light Sensor triggering low-power mode safely and automatically at night.
  • New approved “Soft Night Pattern” that reduce eye glare during night-time usage.*
  • Activ-Dim™™ wire that sync low-power mode for all connected lightheads, with or without Ambient Light Sensor.
  • Upgrade Latest Gen LED meet SAE Class 1 & ECE R65 Class 2 for both clear or smoked lens version.

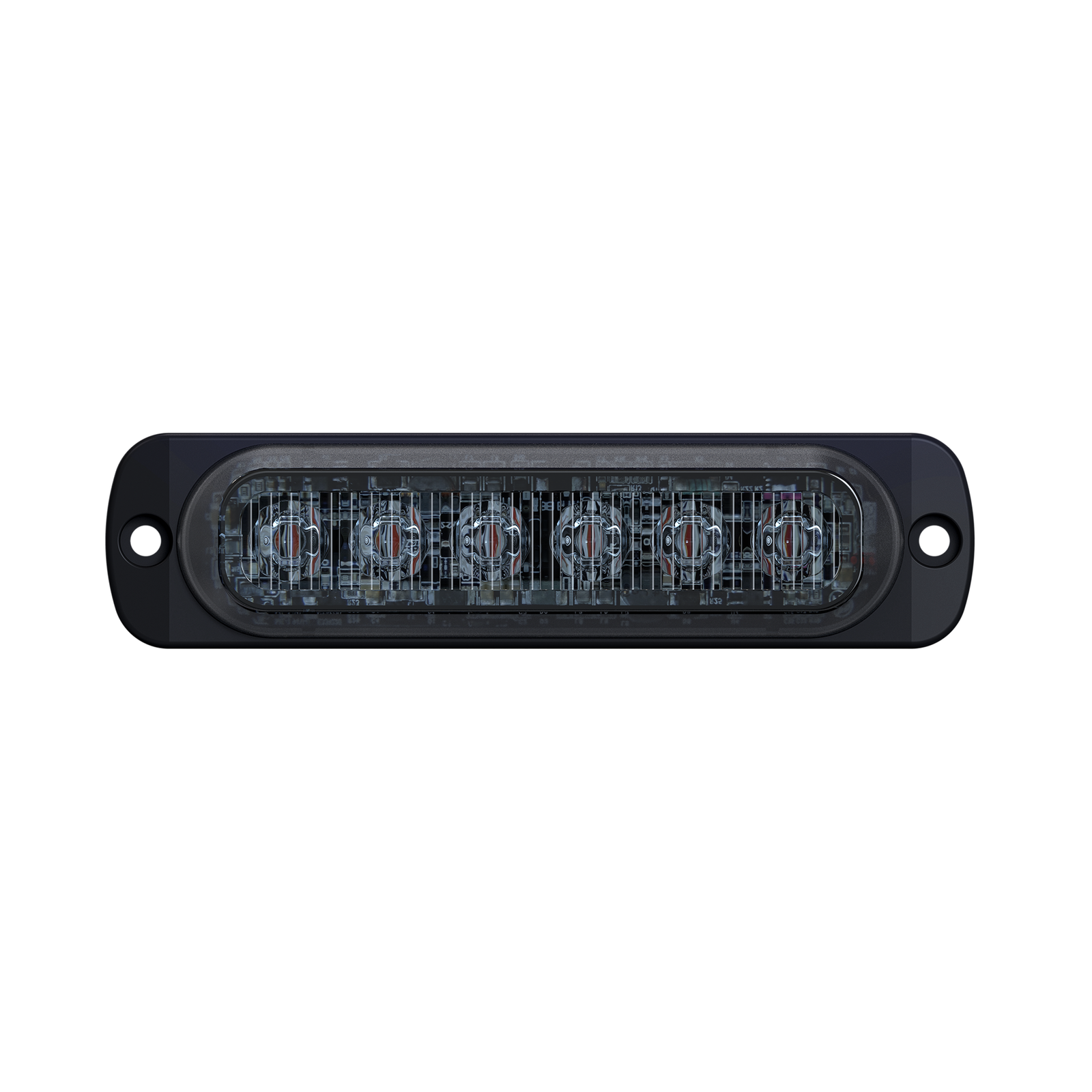

  • Smoked lens version provide less conspicuous appearance and smooth aesthetic with no compromise to performance.

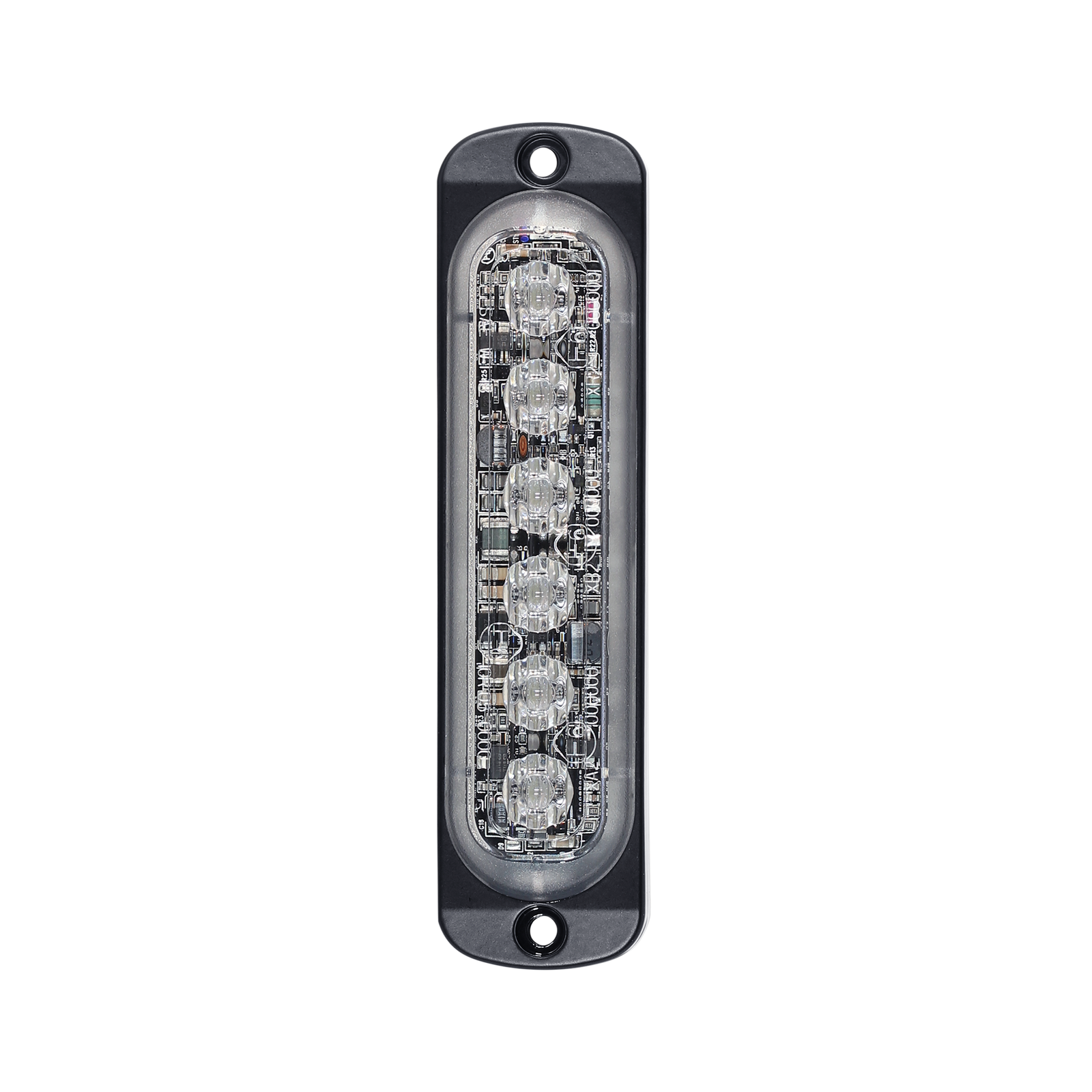

  • Available in horizontal and vertical optics for installation that both compliance to the regulations.
  • 6 units in vertical optic offer a 270 degree warning coverage approved to ECE R65 HTB2.NEW!
  • Triple Memories for versatile application.
  • Flash Pattern Lock function disable FP selection to prevent accidental change of flash patterns.
  • Fully weatherproof IP67&IP69K and vibration resistant design suitable for external or internal use.
  • Solid aluminium housing for efficient heat dissipation and maximum durability.

Additional information

LED Color

RED, BLUE, AMBER, WHITE, GREEN, BLUE/AMBER, RED/BLUE, RED/WHITE, AMBER/WHITE, AMBER/GREEN

Lens Color

Clear, Amber

Specifications

Compliance:
ECE R65 XA2/XB2/XR2
(Horizontal optic w/ Clear or Smoked Lens);
ECE R65 XA2/XB2/XR2 (Vertical optic w/ Clear Lens);
ECE R65 HTB2 (Vertical optic w/ Clear Lens, 6pcs);
ECE R10; SAE J595 Class 1; CISPR 25;
IP Rating: IP67: IP69K
LED Elements: High-power LED x 6 pcs
No. of Warning Patterns: 31
Operating Voltage: 12~24VDC
Avg. Current: 0.76A @12VDC / 0.38A @24VDC (varies with flash pattern)
Max Current: 1,52A @12VDC / 0.76A @24VDC
Max. Power: 18.2W
Wires: Black – GND
(20AWG)
Red – Vcc Warning Mode 1
(20AWG)
White Vcc Warning Mode 2
(20AWG)
Green Low Power / Activ-Dim M
(20AWG)
Yellow – FP Sync / Setting
(20AWG)
Wire Length: 25cm
Fuse Rating: 2A
Synchronization: 20 Units

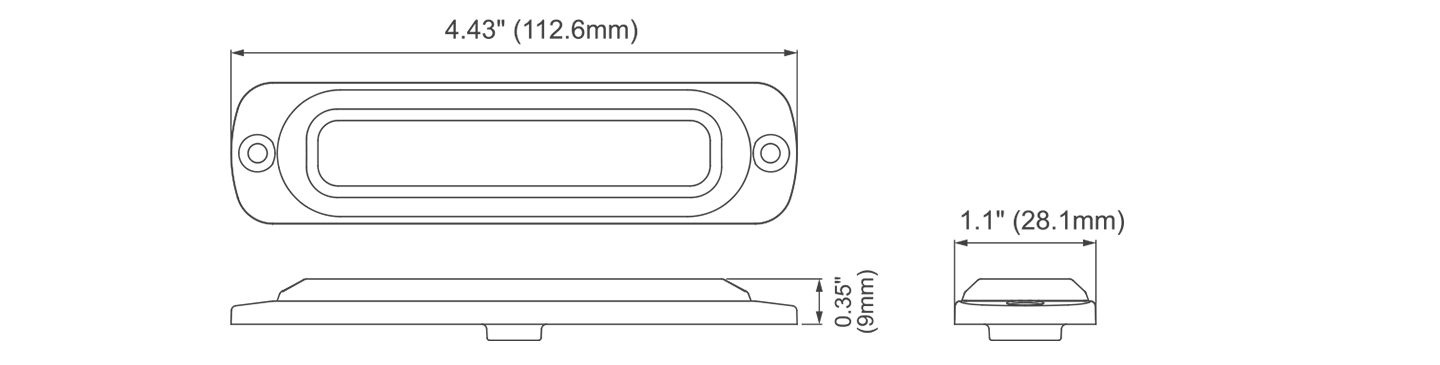

Dimensions

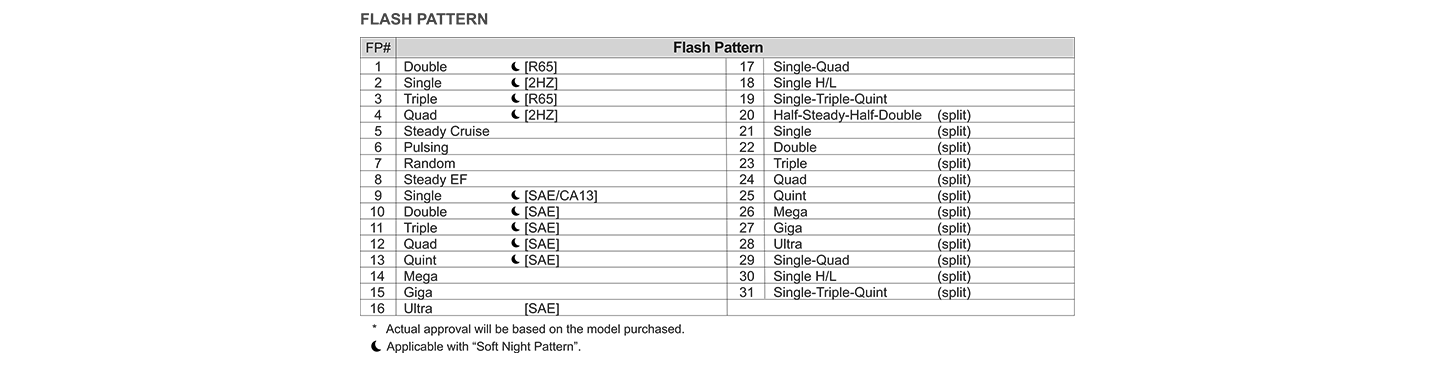

Pattern

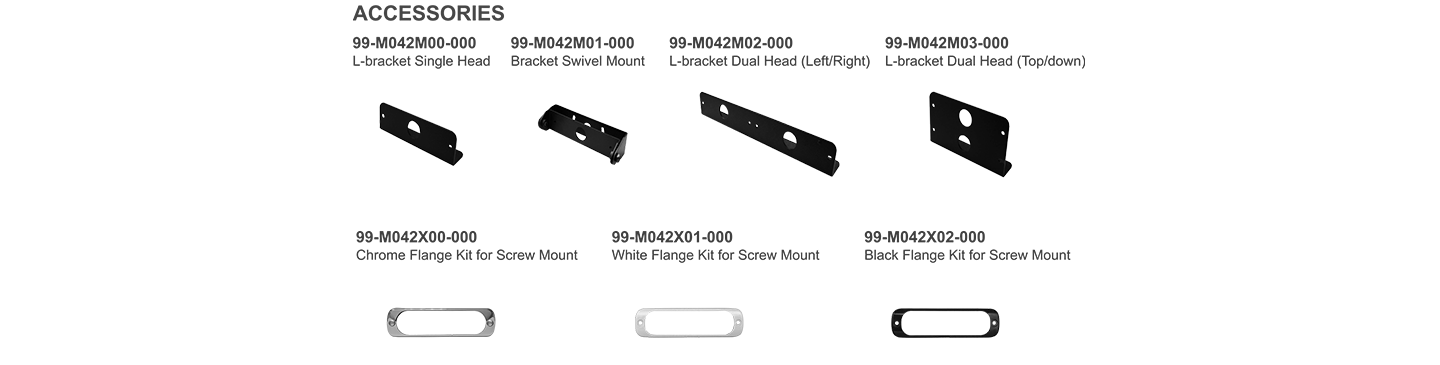

Accessories

Download
