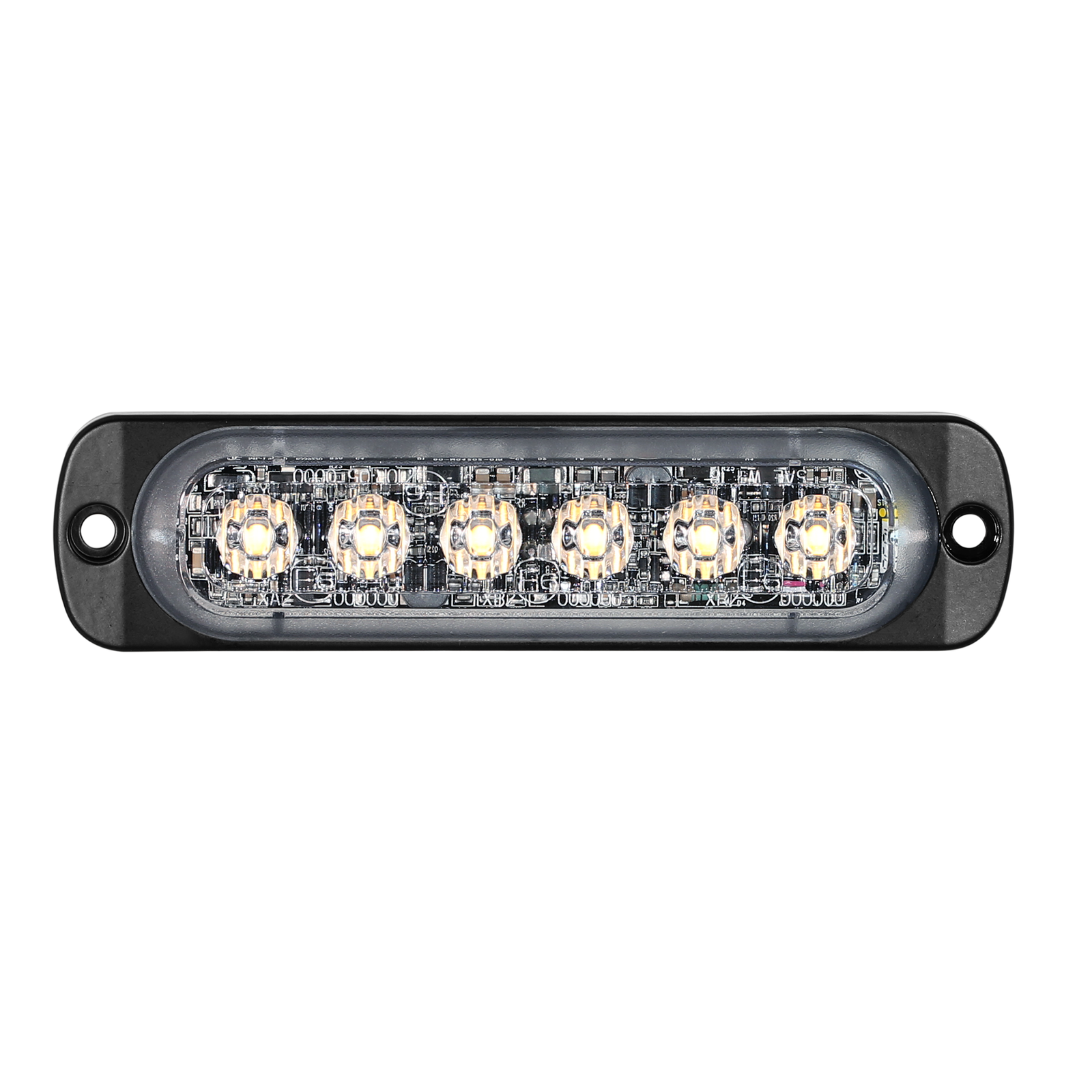

MaxP ST6

Certifications & Standards
• ECE R65 XA2 / XB2 / XR2
• ECE R65 XA1 / XB1 / XR1
• ECE R10
• SAE J595 Class 1
• CISPR 25
• IPX7 (Waterproof Rating)
Color Options
• LED Colors: Red, Blue, Amber, White
• Lens Colors: Clear, Smoked

This product is currently out of stock and unavailable.

Details

  • 0.35″ (9mm) super low-profile optic with powerful output and performance.
  • New upgraded Smoked lens version provide less conspicuous appear-ance and smooth aesthetic with no compromise to performance, NEWT
  • Meet ECE R65 Class 2 for both clear or smoked lens version.
  • Quick Mount model with minimized bezel design and pre-applied 3M adhesive for a clean and quick installation.
  • Available in horizontal and vertical optics for installation that both compli ance to the regulations.
  • Self-contained; no external flasher required.
  • Multi-units synchronization in simultaneous or alternating flash.
  • Fully weatherproof and vibration resistant design suitable for external or internal use.
  • Solid aluminum housing for efficient heat dissipation and maximum durability.
  • Non-volatile memory recalls last flash pattern used at power up.
  • Reverse polarity and load dump protection.

Additional information

LED Color

RED, BLUE, AMBER, WHITE, GREEN, BLUE/AMBER, RED/BLUE, RED/WHITE, AMBER/WHITE, AMBER/GREEN

Lens Color

Clear, Amber

Specifications

Compliance:
ECE R65 XA2/XB2/XR2 (Horizontal optic w/ Clear or Smoked Lens);
ECE R65 XA2/XB2/XR2 (Vertical optic w/ Clear Lens);
ECE R65 XA1/XB1/XR1 (Horizontal optic w/ Smoked Lens)
ECE R10; SAE J595 Class 1; CISPR 25; IPX7
LED Elements: High-power LED x 6 pcs
No. of Warning Patterns: 29
Operating Voltage: 12-24VDC
Avg. Current: 0.6A @12VDC / 0.3A @24VDC (varies with flash pattern)
Max Current: 1.2A @12VDC / 0.6A @24VDC
Max. Power: 14.4 Watts
Wires: Black-GND: 20AWG
Red-Vcc: 20AWG
Yellow-Flash Patterns & Sync: 20AWG
White-Low Power: 20AWG
Wire Length: 25cm for Screw Mount version
46cm flat wire for Quick Mount version
Fuse Rating: 2A
Synchronization: 20 Units

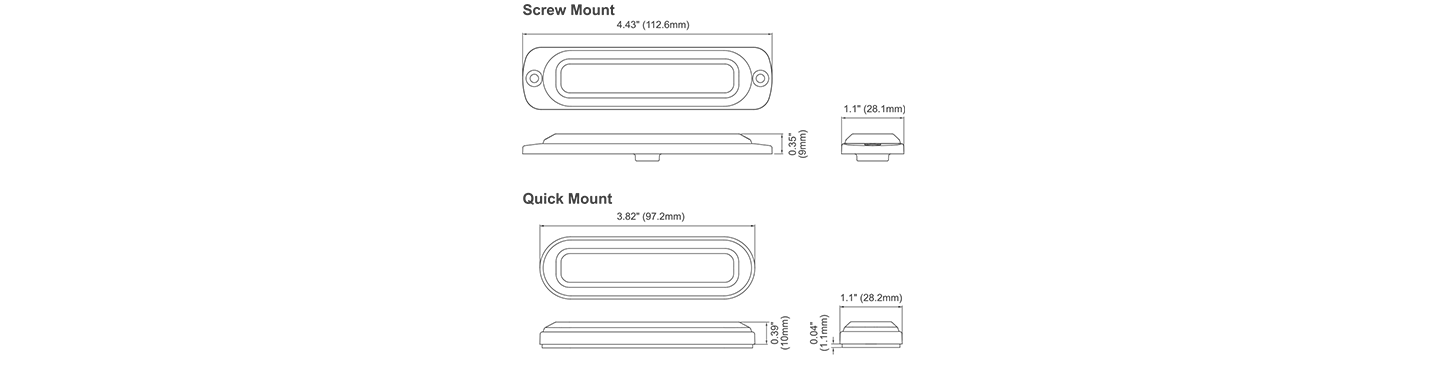

Dimensions

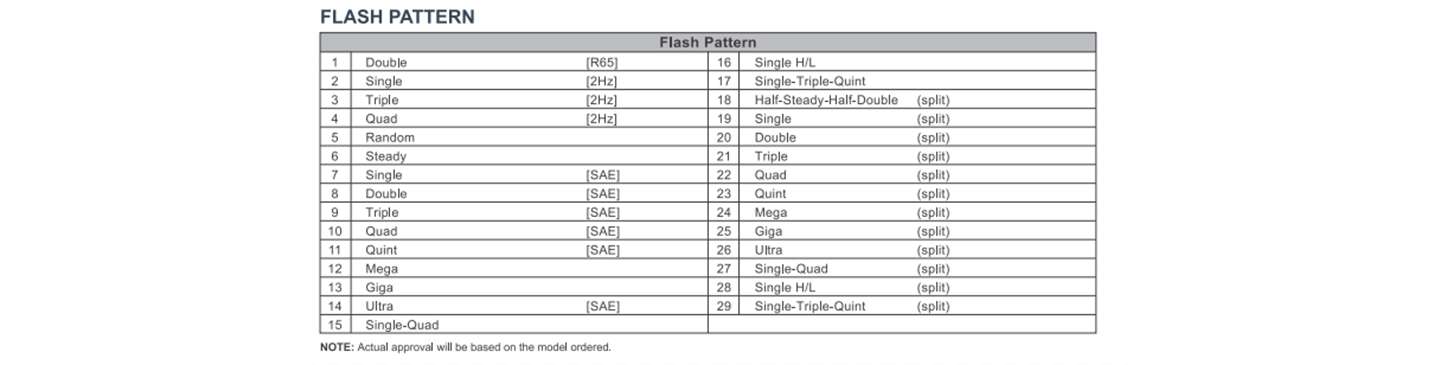

Pattern

Download
