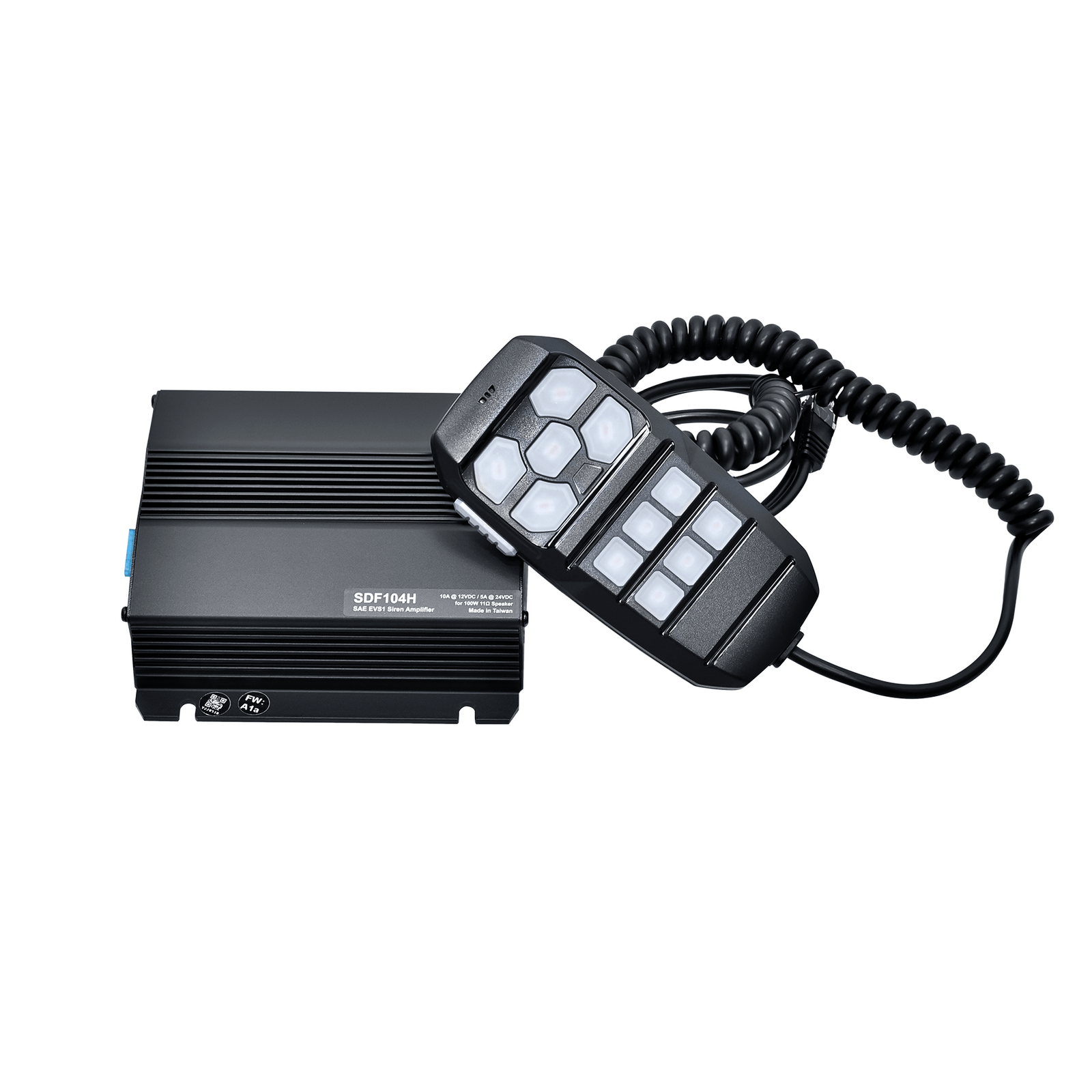

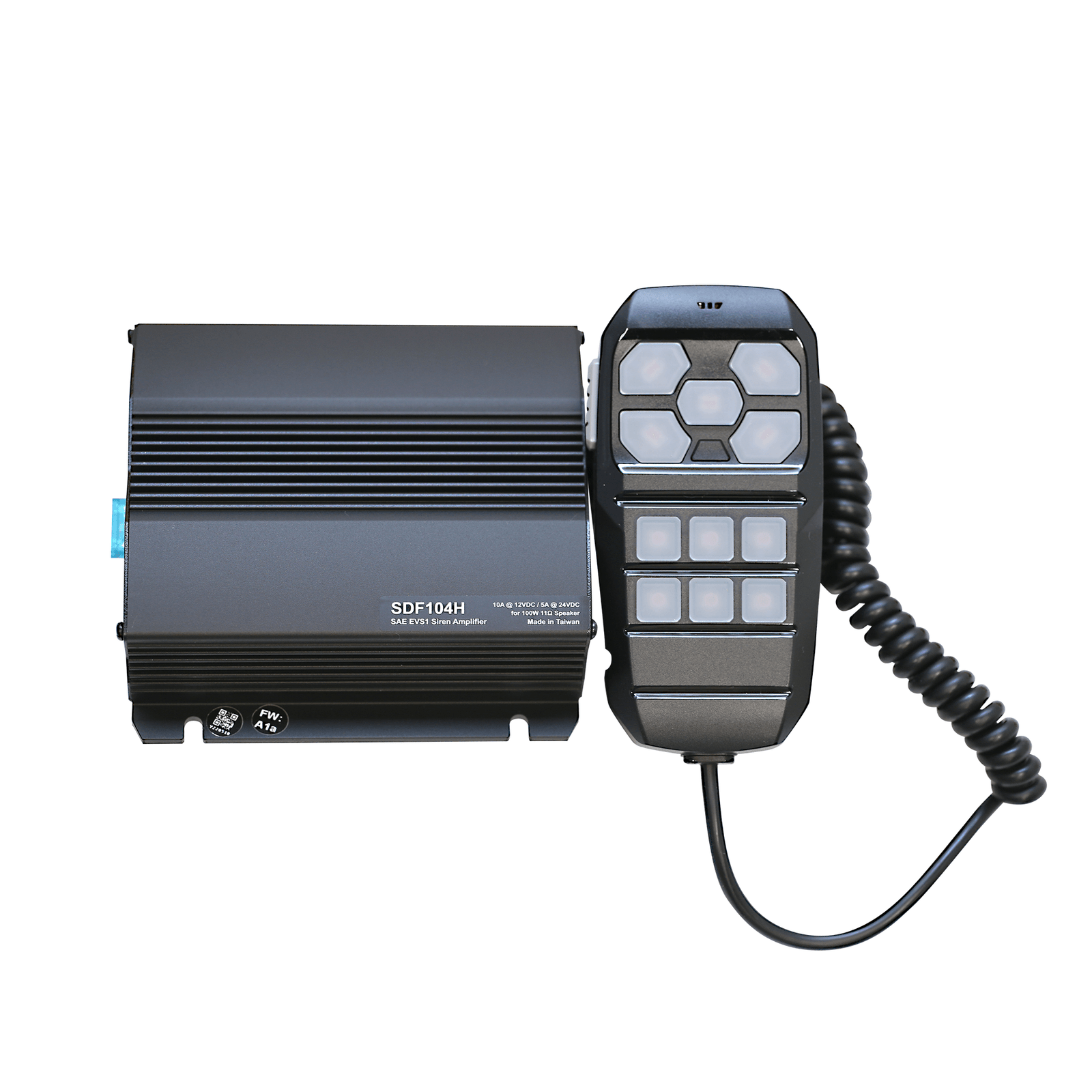

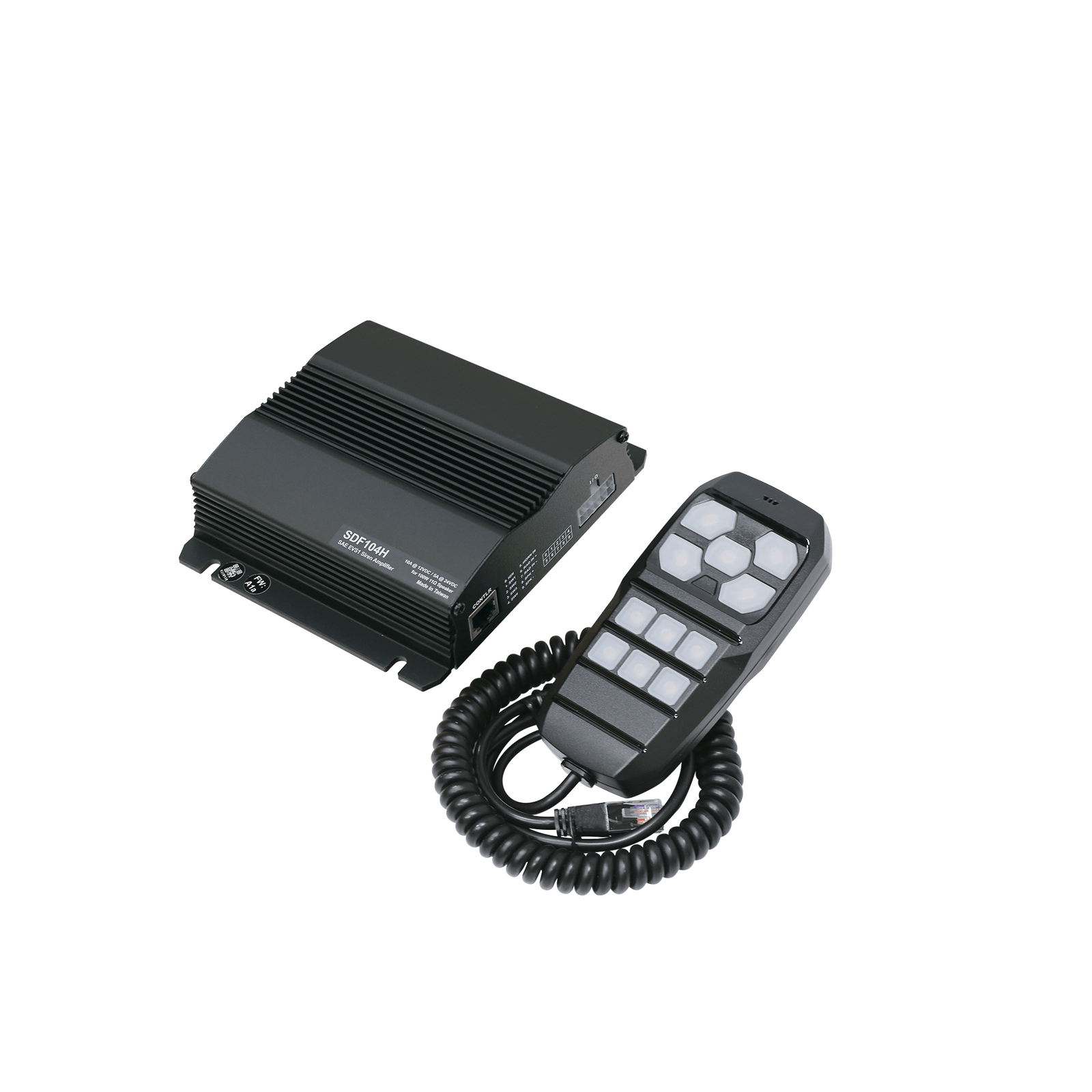

Name: MaxP SDF104H Series
SKU: 9574
Availability: OutOfStock

Details

100W siren amplifier for single speaker (110hm) setup.
Class D amplifier for low amp draw and clean tone.
12-24VDC multi-voltage.
Siren Interlock function that disables siren activation without primary warning.
4 x 5A relay output switch.
22 selectable tone cycles comprised of international and European tones.
Positive input for Horn Ring Transfer.Radio Re-Broadcasting (RRB) and PA function.
12-button handheld controller with built-in microphone.
Compact design with aluminium chassis.
Programmable Code 1/2/3 buttons, momentary/maintained/timer witch, siren volume, tone.
Reverse Polarity Protection.

Additional information

LED Color	RED, BLUE, AMBER, WHITE, GREEN, BLUE/AMBER, RED/BLUE, RED/WHITE, AMBER/WHITE, AMBER/GREEN
Lens Color	Clear, Amber

Compliance:	SAE J1849 EVS1; CA13; ECE R10; CISPR 25
Standby Current:	0 mA (w/o IGN wire) / 0.35 A (w/ IGN wire)
Input Voltage:	12-24 VDC
Max. Current:	10A @ 12VDC/5A @ 24VDC (w/o light control outputs) 30A @ 12VDC/25A @ 24VDC (w/ light control outputs) Siren Output Power: 100W Siren Output Load: 100W-ACR 110
Operating Temp:	-30°C to 65°C
Siren Controls:	5 ON/OFF push-buttons (SIREN, RADIO, Code 1, Code 2, Code 3) 3 Momentary push-buttons (PTT, MAN, HORN) 4 Momentary/Maintained/Timer push-buttons (SW1, SW2, SW3, SW4) SW1 may be set to interlock SW2, SW3, SW4 and Siren IGN (Ignition) Input Connection
