MaxP ONE EIGHTY OE9

MaxP ONE EIGHTY OE9 - Image 2

MaxP ONE EIGHTY OE9 - Image 3

MaxP ONE EIGHTY OE9 - Image 4

Sold out

MaxP ONE EIGHTY OE9

Certifications & Standards
• SAE J595 Class1,
• SAE J845 180° Class1, CA Title 13
Color Options
• LED Colour: RED, BLUE, AMBER,WHITE
• Lens Colour: Clear

<span class="ts-tooltip button-tooltip" data-title="Add to compare">Compare</span>

Details

True 180° wide-angle LED waming module.
Multi-Voltage Input 12-24VDC.
Built-in 12 selectable flash patterns.
LEDs rated to 100,000 hours of operation.
Non-volatile memory recalls last flash pattern used at power up.
Multiple units are synchronizable and can flash simultaneously or alternately.
Reverse polarity protection.
Weatherproof and vibration resistant design for external or internal use,
Aluminium base for heat dissipation.

Additional information

LED Color	RED, BLUE, AMBER, WHITE, GREEN, BLUE/AMBER, RED/BLUE, RED/WHITE, AMBER/WHITE, AMBER/GREEN
Lens Color	Clear, Amber

Specifications

Compliance:	SAE J595 Class1, SAE J845 180° Class1, CA Title 13
LED Elements:	High-power LED x 9 pcs
No. of Warning Patterns:	12
Operating Voltage:	12-24VDC Avg. Current: 0.58A @12VDC / 0.28A @24VDC (varies with flash pattern)
Max Current:	1.16A @12VDC / 0.58A @24VDC
Max. Power:	14 Watts

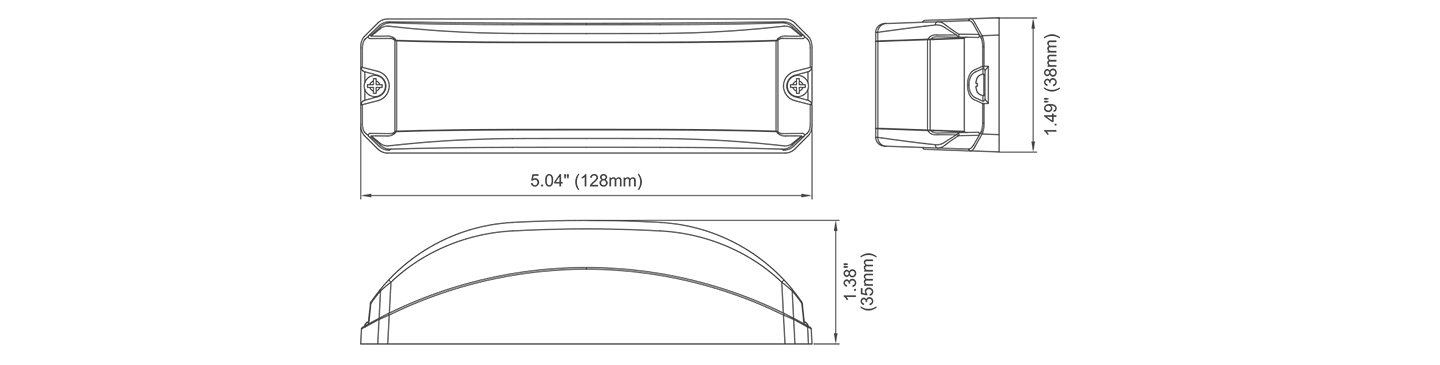

Dimensions

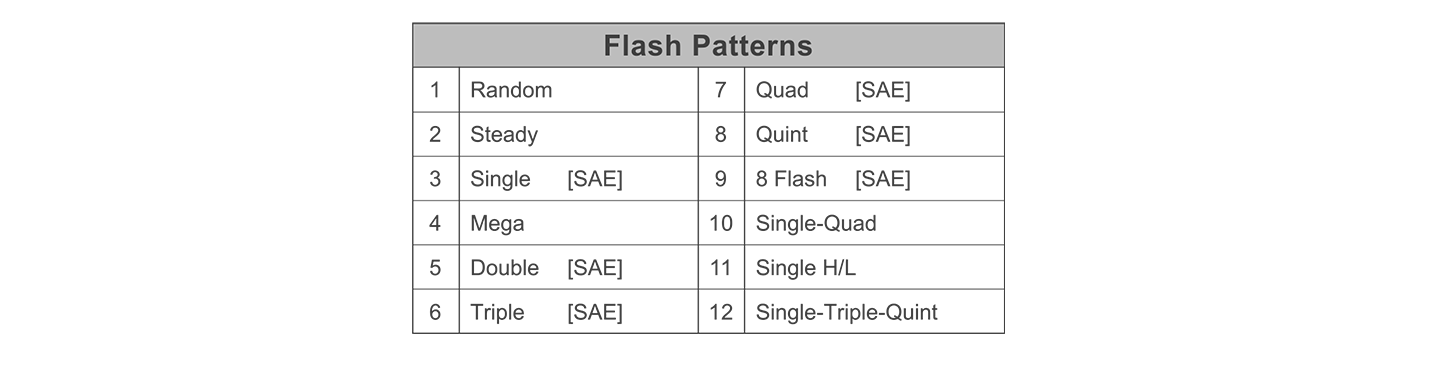

Pattern

Download

DOWNLOAD MAXP ONE EIGHTY OE9 Spreadsheet

DOWNLOAD MAXP ONE EIGHTY OE9-User Manual
