MaxP LP6

Certifications & Standards
• SAE J595 Class 1,
• SAE J845 Class 1,
• CA13 Class B, ECE R10, IP68.
Certifications & Standards
• LED Colour: RED, BLUE, AMBER, WHITE
• Lens Colour: Clear

This product is currently out of stock and unavailable.

Details

  • Super low profile for discreet mounting.
  • Self-Adhesive backing for quick simple mounting.
  • Multi-Voltage Input 12-24VDC.
  • Built-in 23 selectable flash patterns.
  • LEDs rated to 100,000 hours of operation.
  • Non-volatile memory recalls last flash pattern used at power up.
  • Multiple units are synchronizable and can flash simultaneously or alternately.
  • Reverse polarity protection.
  • Weatherproof and vibration resistant design for external or internal use.

Additional information

LED Color

RED, BLUE, AMBER, WHITE, GREEN, BLUE/AMBER, RED/BLUE, RED/WHITE, AMBER/WHITE, AMBER/GREEN

Lens Color

Clear, Amber

Specifications

Compliance:
SAE J595 Class 1, SAE J845 Class 1, CA13 Class B, ECE R10, IP68.
LED Elements: High-power LED x 6pcs
No. of Warning Patterns: 23
Operating Voltage: 12-24VDC
Avg. Current: 0.25A @12VDC/0.125A @24VDC (varies with flash pattern)
Max Current: 0.5A @12VDC/0.25A @24VDC
Max. Power: 3 Watts (varies with flash pattern)
Max. Power: 6 Watts
Wires: White Vcc: 20cm (24AWG) Black-GND: 20cm (24AWG) Brown-Flash Patterns & Sync: 20cm (24AWG)
Fuse Rating: 1A
Synchronization: 15 units

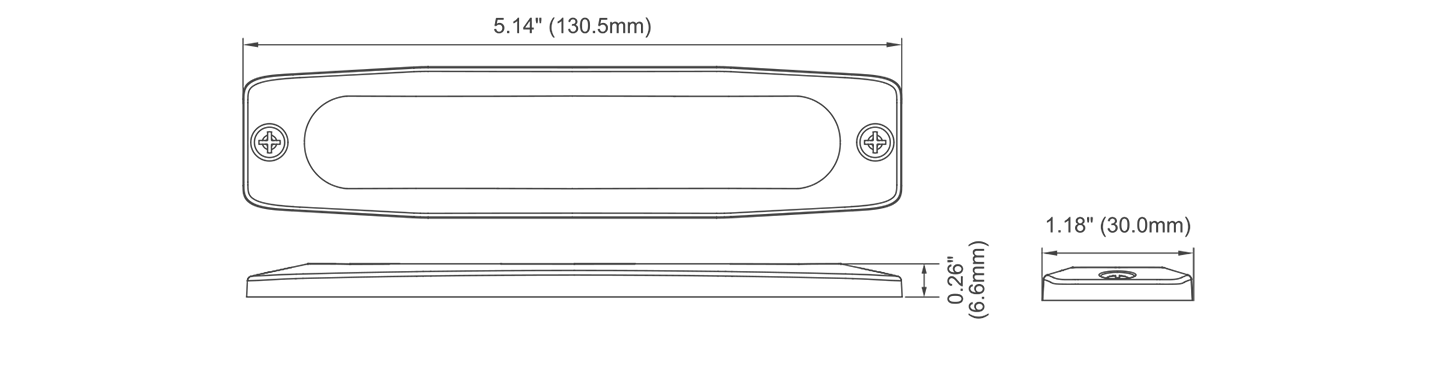

Dimensions

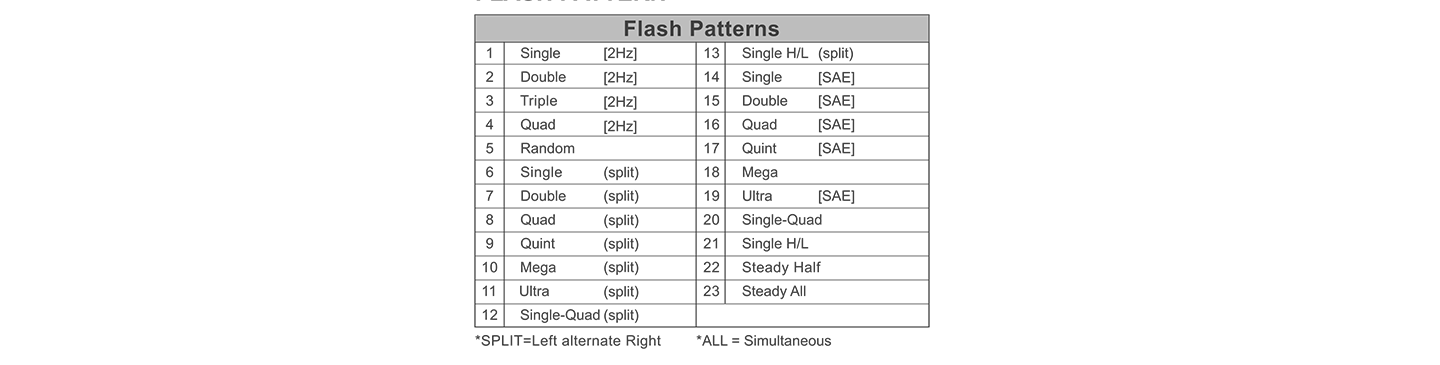

Pattern

Download
