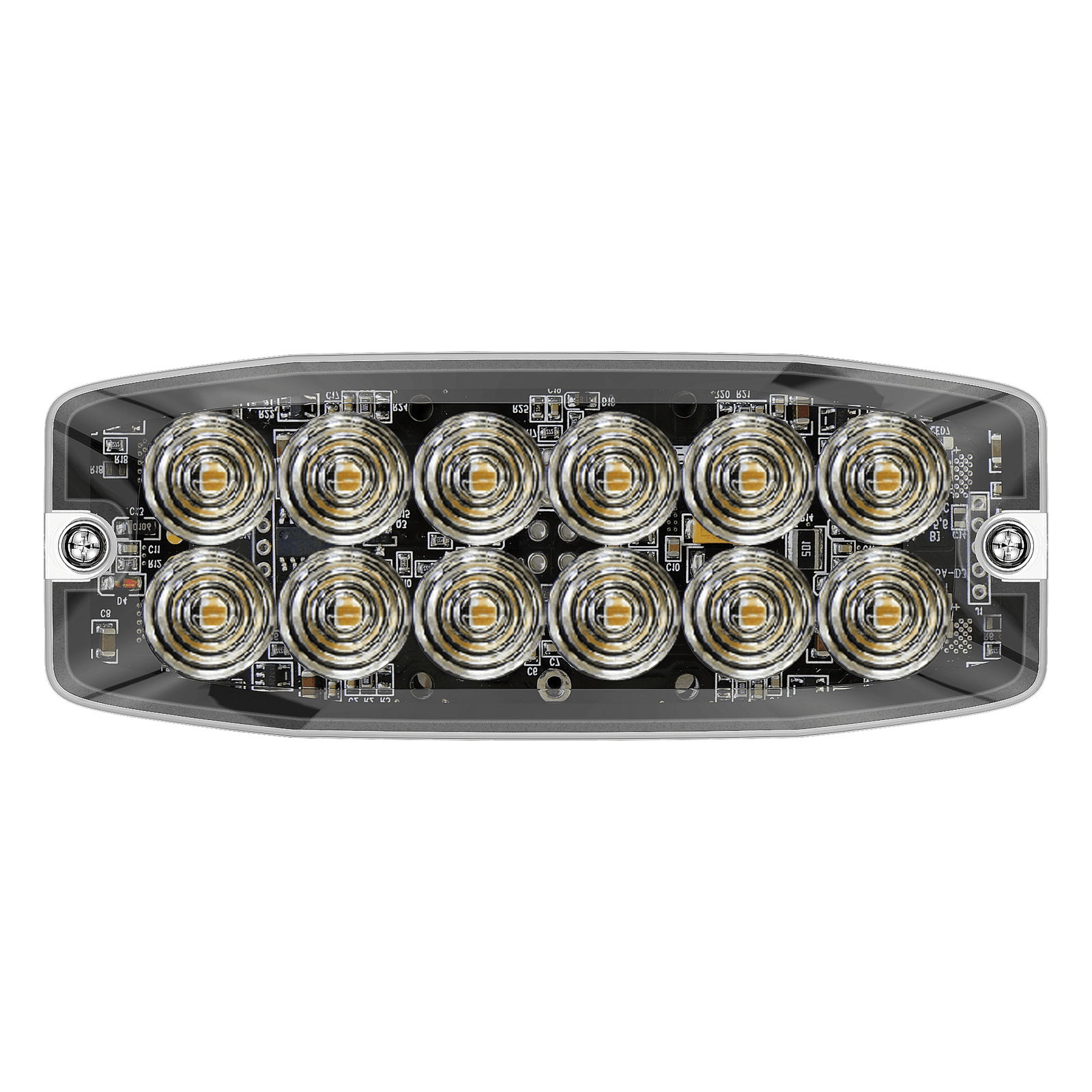

MaxP LP26

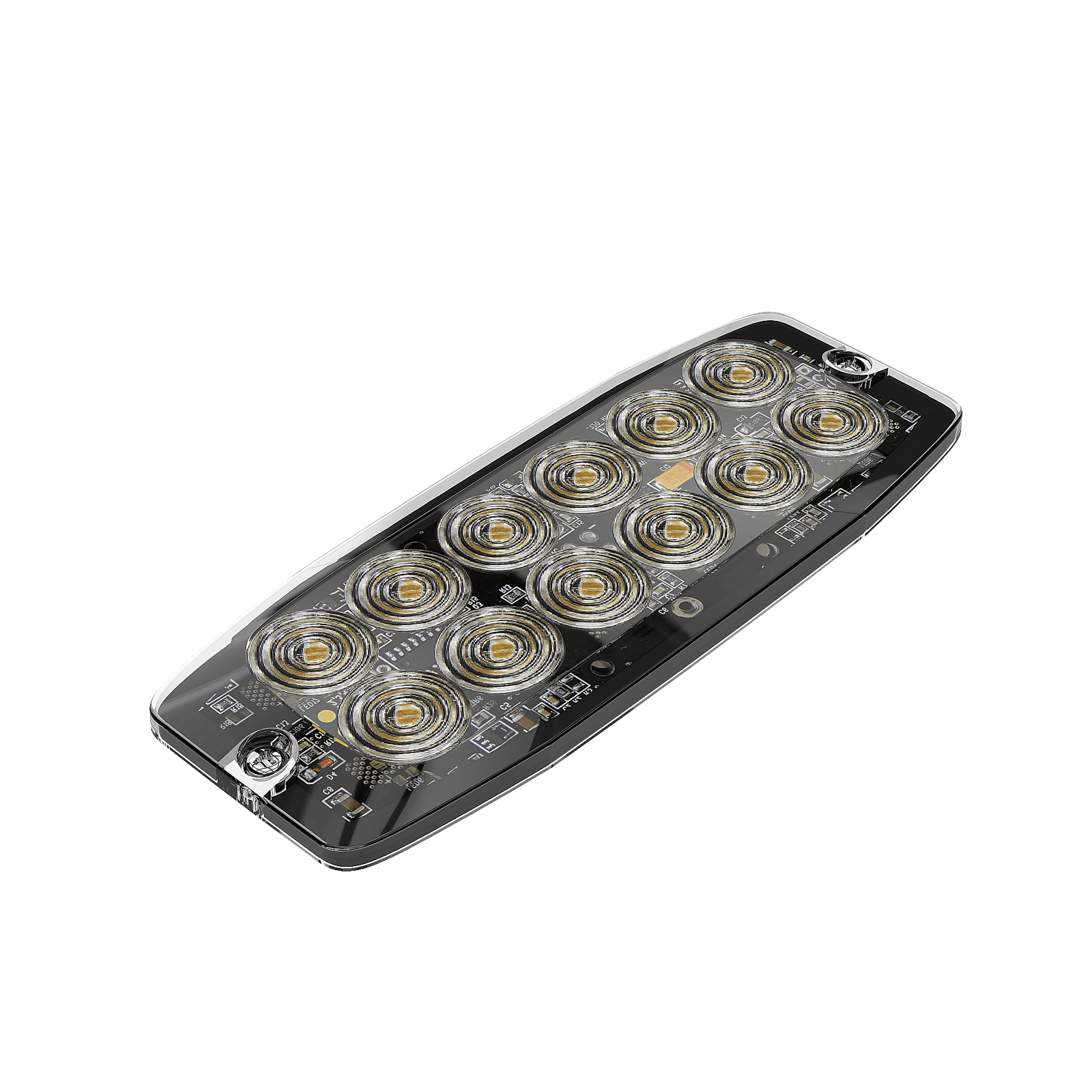

MaxP LP26 - Image 2

Sold out

MaxP LP26

Certifications & Standards
• SAE J595 Class 1, ECE R10, CA13, IPX7
• LED Elements: High-power LED x 4 pcs
Color Options
• LED Colour: RED, BLUE, AMBER, WHITE
• Lens Colour: Clear

<span class="ts-tooltip button-tooltip" data-title="Add to compare">Compare</span>

Details

World’s No.1 Ultra low profile 6.6mm lighthead w/ SAE Class 1 approval.
SQUARE design allows versatile mounting & orientation.
Approved ECE R10 EMC compliance.
Self-adhesive backing for quick & easy installation.
12-24VDC Multi-Voltage Input..
Self-contained; no external flasher required.
Multi-units synchronization in simultaneous or alternating flash.
Reverse polarity protection.
Weatherproof and vibration resistant design for external use.
Solid aluminum backing for efficient heat dissipation and maximum durability.

Additional information

LED Color	RED, BLUE, AMBER, WHITE, GREEN, BLUE/AMBER, RED/BLUE, RED/WHITE, AMBER/WHITE, AMBER/GREEN
Lens Color	Clear, Amber

Specifications

Compliance:	SAE J595 Class 1, SAE J845 Class 1, ECE R65 Class 1, ECE R10 CA13, IPx7.
LED Elements:	High-power LED x 12pcs
No. of Warning Patterns:	30
Operating Voltage:	12-24VDC Avg. Current: 0.715A @12VDC/0,357A @24VDC (varies with flash pattern)
Max Current:	1.43A @12VDC/0.715A @24VDC
Max. Power:	17.2 Watt Wires: White Vcc: 20cm (24AWG) Black GND: 20cm (24AWG) Brown Flash Patterns & Sync: 20cm (24AWG) Fuse Rating: 2A Synchronization: up to 20 units

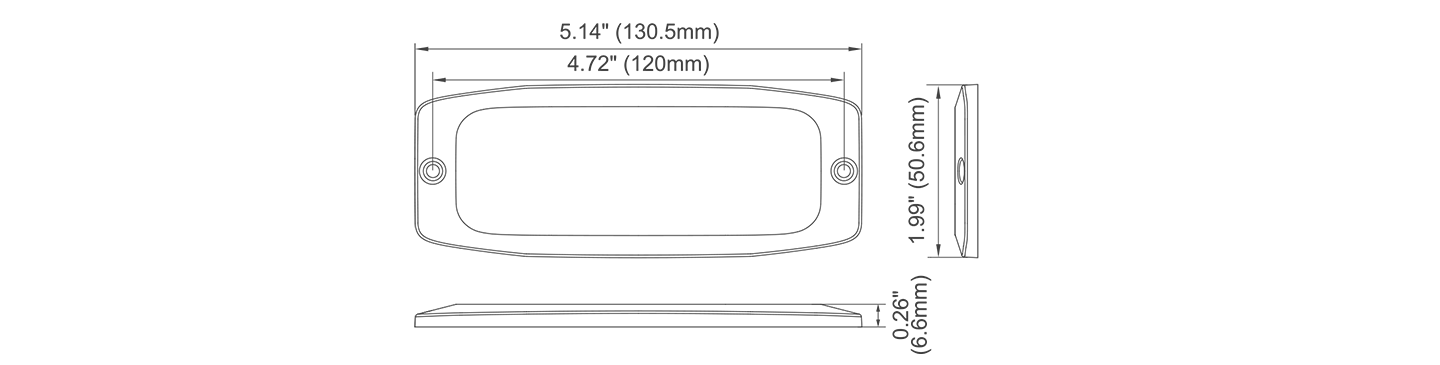

Dimensions

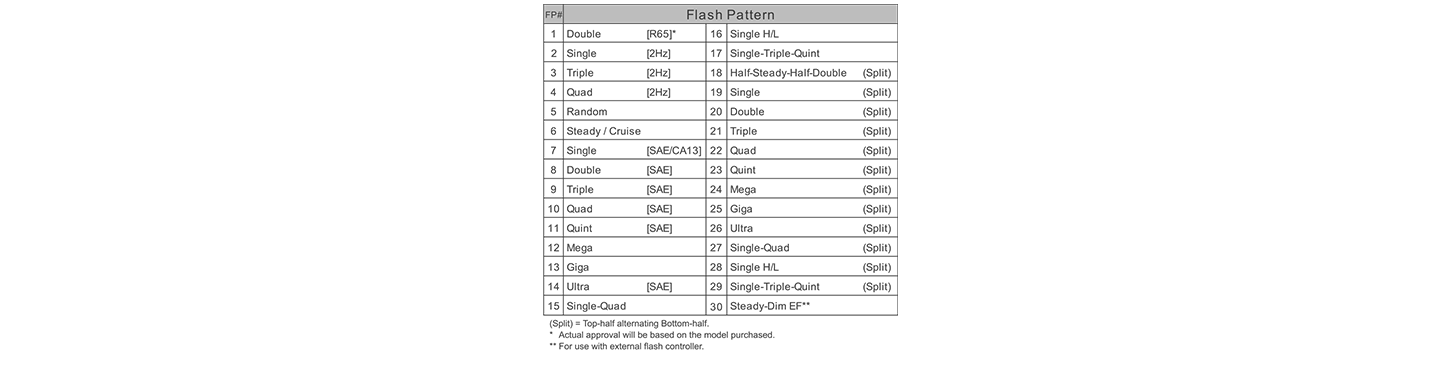

Pattern

Download

DOWNLOAD MAXP LP26 Spreadsheet

DOWNLOAD MAXP LP26 User Manual
