MaxP ES-SERIES

Certifications & Standards
• ECE R65 (XA1, XB, XR1);
• ECE R10;
• SAE J595 Class 1;
• CA Title 13; IPX8
Color Options
• LED Colour: RED, BLUE, GREEN, AMBER, WHITE
• Lens Colour: Clear

This product is currently out of stock and unavailable.

Details

  • 0.62″ (15.79mm) Narrow profile with remarkable Class 1 output in Horizontal or Vertical mount,
  • Universal Multi-Angle Bracket, mounting virtually anywhere.
  • Brand-new unique optical design for efficient and powerful output.
  • Multi-units synchronization in simultaneous or alternating flash.
  • Reverse polarity protection.
  • Weatherproof and vibration resistant design for internal or external use.
  • Solid aluminium housing for efficient heat dissipation and maximum durability.

Additional information

LED Color

RED, BLUE, AMBER, WHITE, GREEN, BLUE/AMBER, RED/BLUE, RED/WHITE, AMBER/WHITE, AMBER/GREEN

Lens Color

Clear, Amber

Specifications

Compliance:
(Horizontal & Vertical optic)
ECE R65 (XA1, XB, XR1); ECE R10; SAE J595 Class 1; CA Title 13; IPX8
LED Elements: High-power LED x 6pcs
No. of Warning Patterns: 23
Operating Voltage: 12-24VDC
Average Current:
0.57A @12VDC/0.29A @24VDC (varies with flash pattern)
Max Current: 1.14A @12VDC/0.57A @24VDC
Max. Power: 13.7 Watts
Wires:
Red-Vcc: 25cm (20AWG)
Black-GND: 25cm (20AWG)
Yellow-Sync & Functions: 25cm (20AWG)
Fuse Rating:
2A

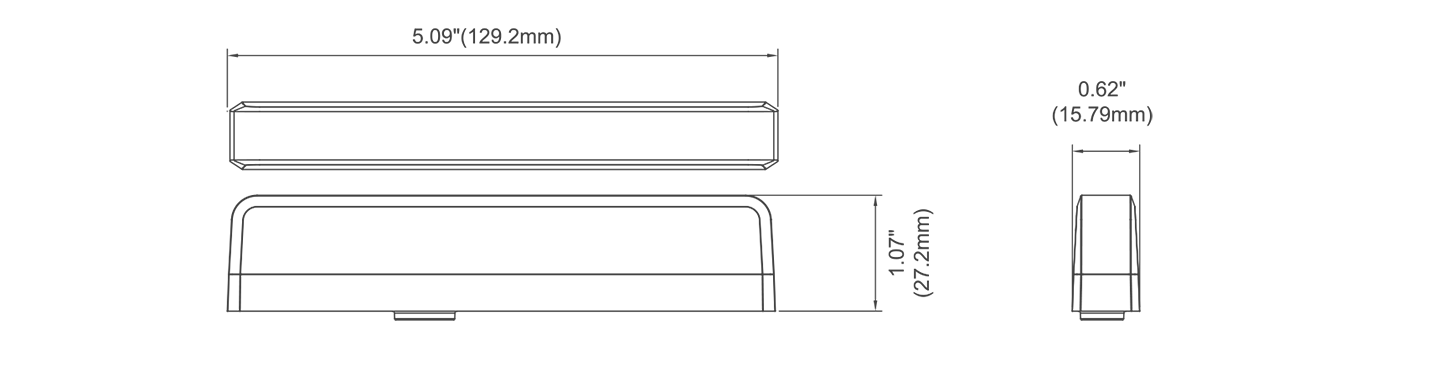

Dimensions

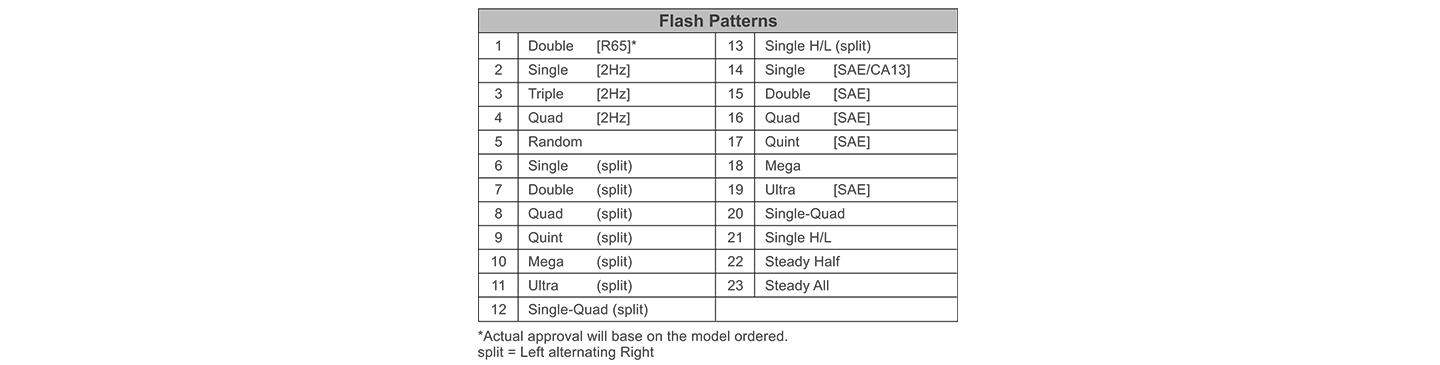

Pattern

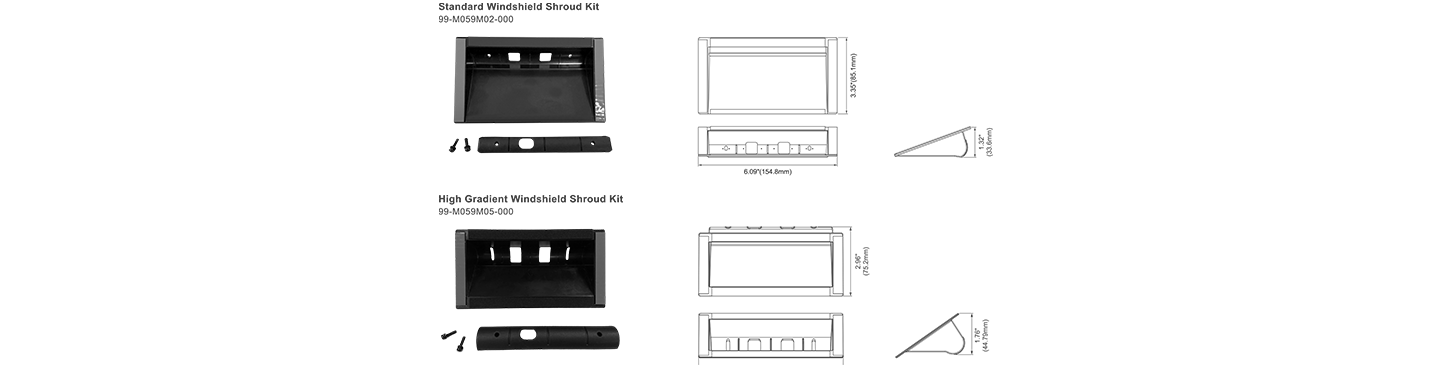

Accessories

Download
