MaxP Beacon B23

• ECE R65 (TA1);
• ECE R10,
• SAE J845 Class1; IPX7
• LED Colour: AMBER
• Lens Colour:AMBER or Clear

This product is currently out of stock and unavailable.

Details

  • Ultra-compact and low-profile design for discreet placement or limited installation space.
  • Certified powerful ECE R65 TA1 performance provides optimum 360 degree coverage.
  • Durable polycarbonate lens is available in Amber and Clear.
  • Weatherproof design: 100% sealed rated at IPX7.
  • Vibration resistant design with aluminum base.
  • Multiple units can be grouped to flash simultaneously or alternately.
  • Multiple mounting options for all vehicle applications.
  • 50,000 hours rated Long-Life LED.

Additional information

LED Color

RED, BLUE, AMBER, WHITE, GREEN, BLUE/AMBER, RED/BLUE, RED/WHITE, AMBER/WHITE, AMBER/GREEN

Lens Color

Clear, Amber

Specifications

Compliance: ECE R65 (TA1); ECE R10; SAE J845 Class1; IPX7
LED Elements: 16 pcs
Wires: Red-Warning Mode
Black – GND
White Flash Pattern Selection / Sync
Red+Black+White-Cruise Mode
Wire Length: 40cm (18AWG)
Operating Temperature: -30°C to +65°C
Max Current: 2,5A @12VDC; 1.25A @24VDC
Fuse Rating: 4A

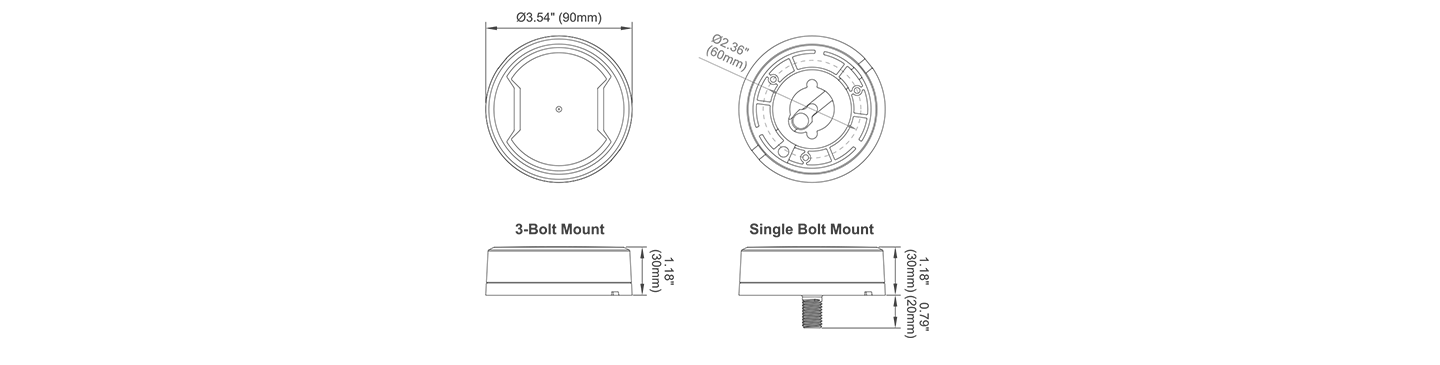

Dimensions

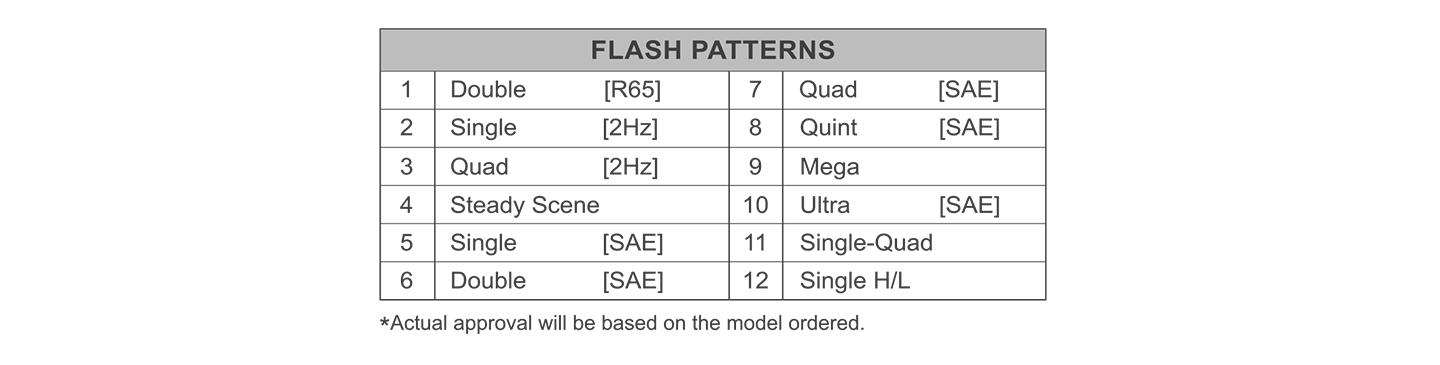

Pattern

Download
