MaxP Beacon B17

Certifications & Standards
• SAE J845 Class 1 (A, W): IPX4
Color Options
• LED Colour: AMBER,WHITE
• Lens Colour: Clear

<span class="ts-tooltip button-tooltip" data-title="Add to compare">Compare</span>

Details

Input Voltage 12-24VDC.
LEDs rated to 100,000 hours of operation.
Non-volatile memory recalls last flash pattern used at power up.
Multiple units are synchronizable and can flash simultaneously or alternately.
Reverse polarity protection.
Weatherproof and vibration resistant design for external or internal use.

Additional information

LED Color	RED, BLUE, AMBER, WHITE, GREEN, BLUE/AMBER, RED/BLUE, RED/WHITE, AMBER/WHITE, AMBER/GREEN
Lens Color	Clear, Amber

Specifications

Compliance:	SAE J845 Class 1 (A, W): IPX4
LED Elements:	High-power LED x 8 pcs
Wires:	Magnetic Mount Single button cigar-plug: 300cm Permanent Mount
Operating Temperature:	-30°C to +65°C
Max Current:	1,1A @12.8V/0.6A @ 24V
Max. Power:	14.1 W

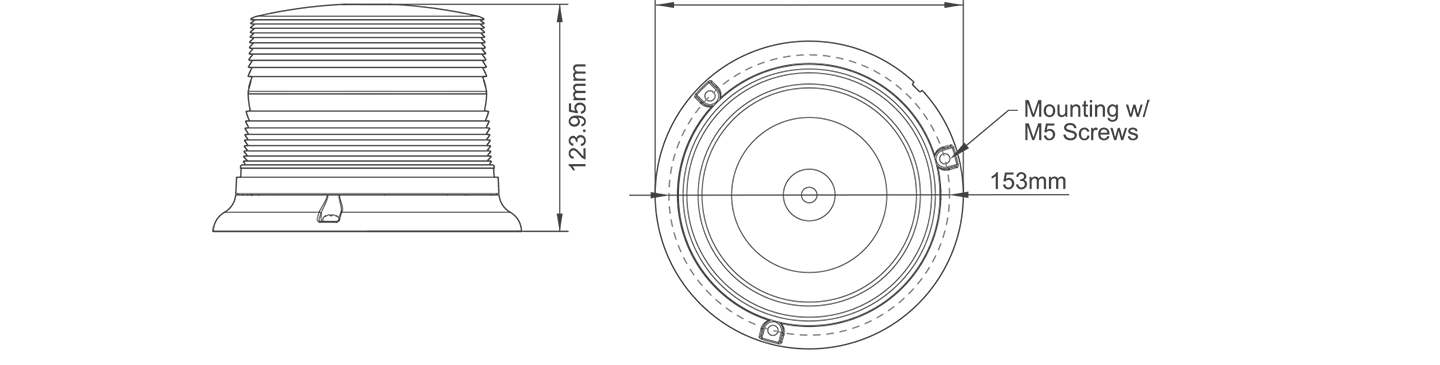

Dimensions

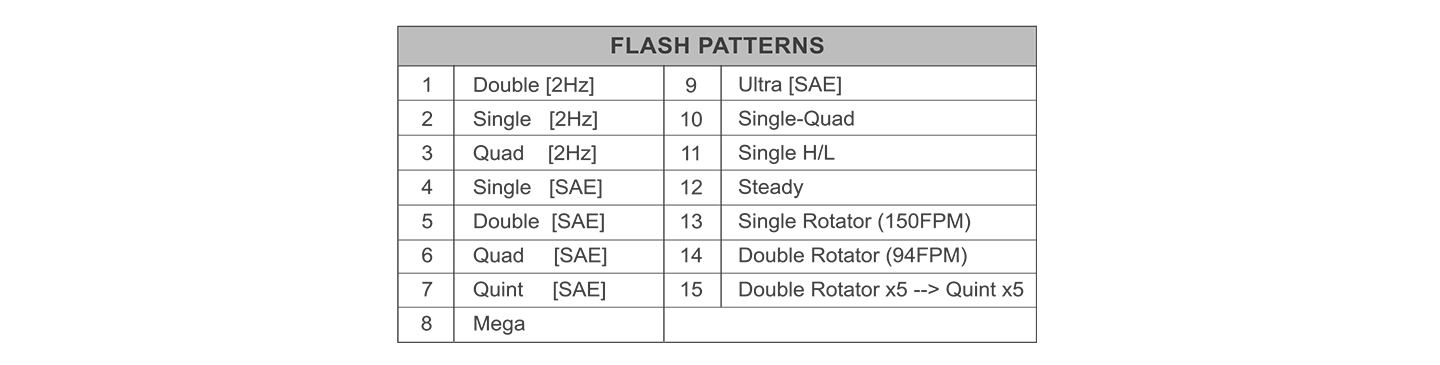

Pattern

Download

DOWNLOAD MAXP Beacon B17 Spreadsheet

DOWNLOAD MAXP Beacon B17 User Manual
