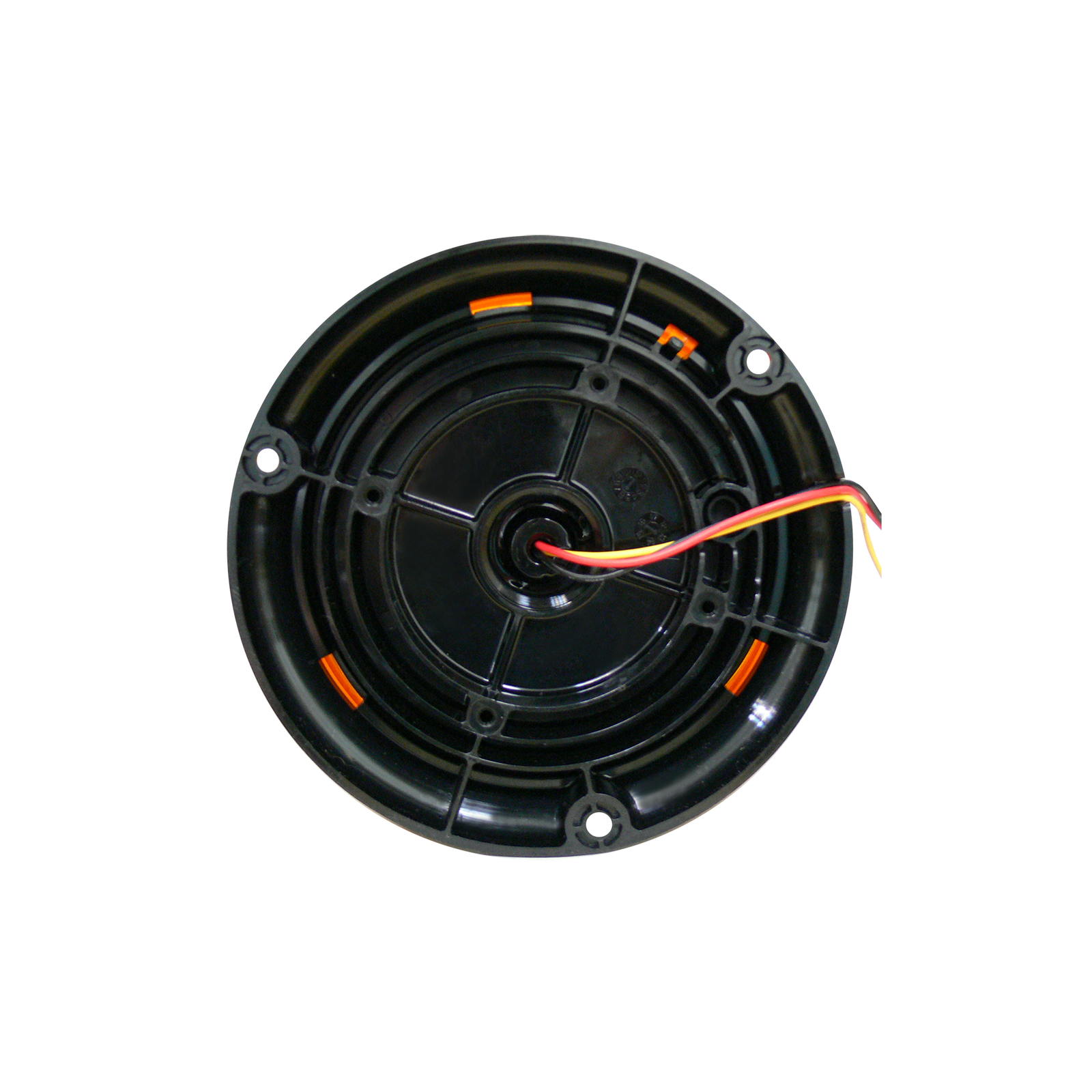

MaxP Beacon B15 - Image 2

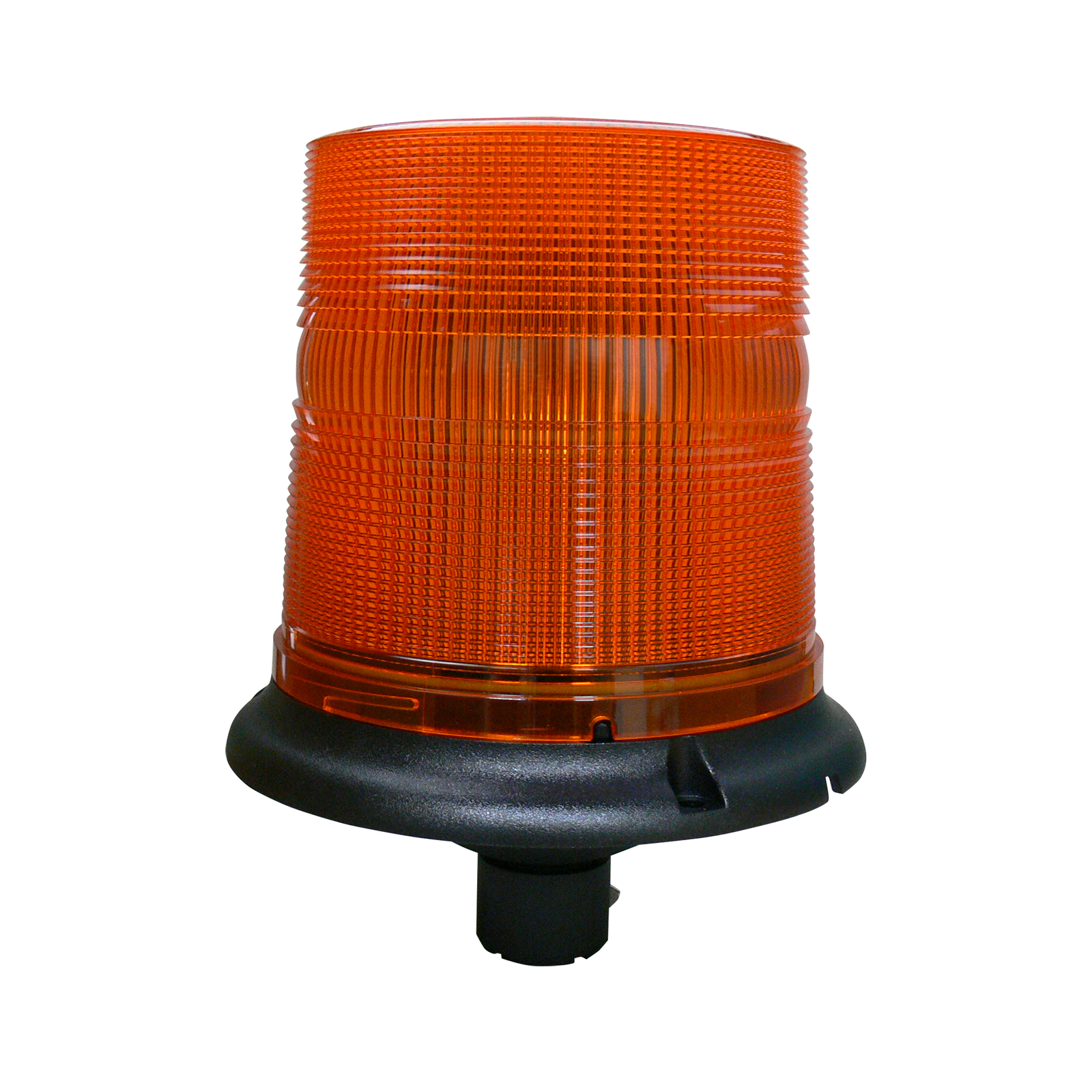

MaxP Beacon B15 - Image 3

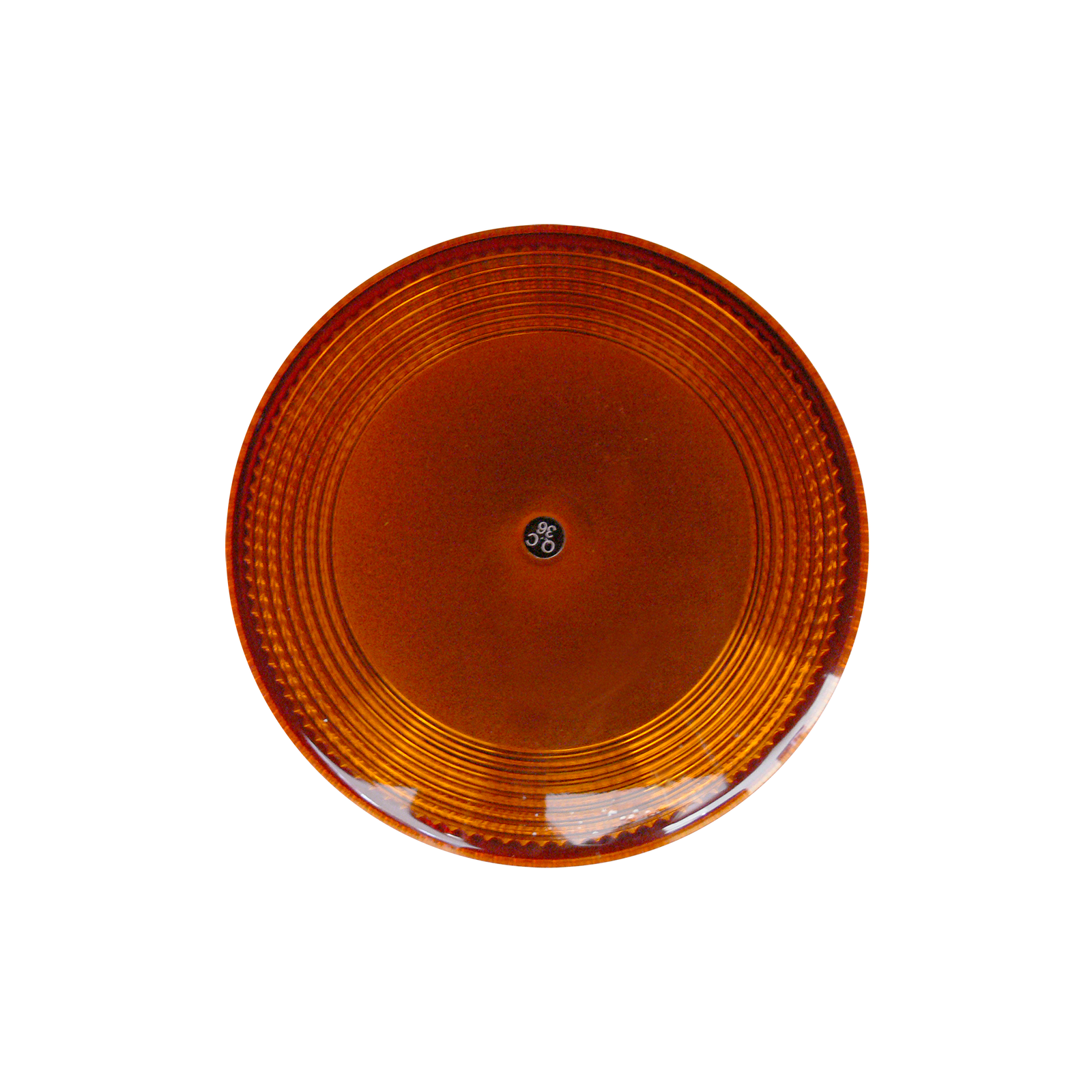

MaxP Beacon B15 - Image 4

Sold out

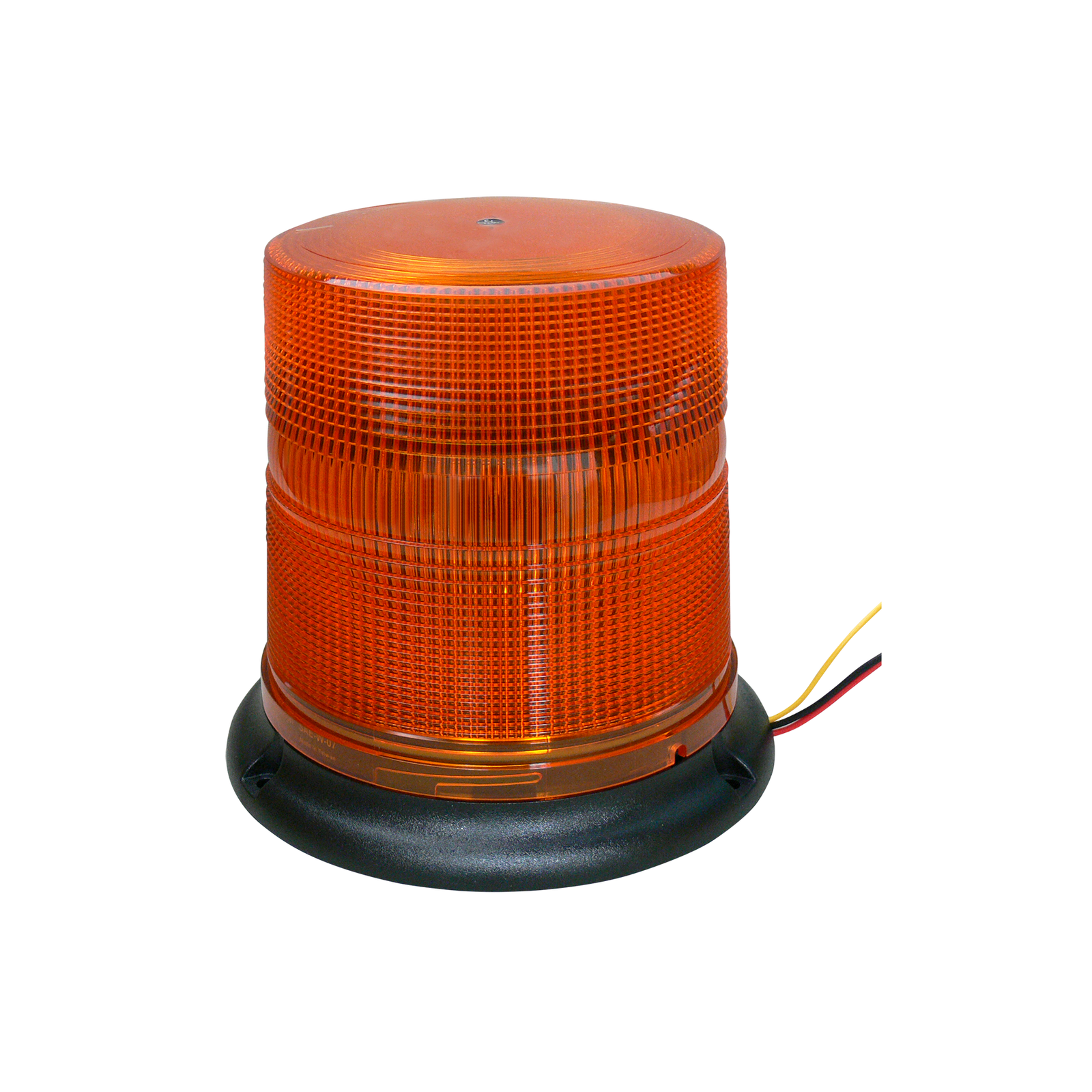

MaxP Beacon B15

Certifications & Standards
• SAE J845 Class 1 (A, W); ECE R10; IPX4
Color Options
• LED Colour: AMBER,WHITE
• Lens Colour: Clear

<span class="ts-tooltip button-tooltip" data-title="Add to compare">Compare</span>

Details

LED beacon approved to SAE J845 Class 1.
ECE R10 EMC Electromagnetic Compatibility.
Input Voltage 12-24VDC.
LEDs rated to 100,000 hours of operation.
Non-volatile memory recalls last flash pattern used at power up.
Multiple units are synchronizable and can flash simultaneously or alternately.
Reverse polarity protection.
Weatherproof and vibration resistant design for external or internal use.

Additional information

LED Color	RED, BLUE, AMBER, WHITE, GREEN, BLUE/AMBER, RED/BLUE, RED/WHITE, AMBER/WHITE, AMBER/GREEN
Lens Color	Clear, Amber

Specifications

Compliance:	SAE J845 Class 1 (A, W); ECE R10; IPX4
LED Elements:	High Power LED x 8pcs
Wires:	Magnetic Mount Single button cigar-plug: 300cm
Operating Temperature:	-30°C to +65°C
Max Current:	1.1A @12.8V/0.6A @ 24V
Max. Power:	14.1 W

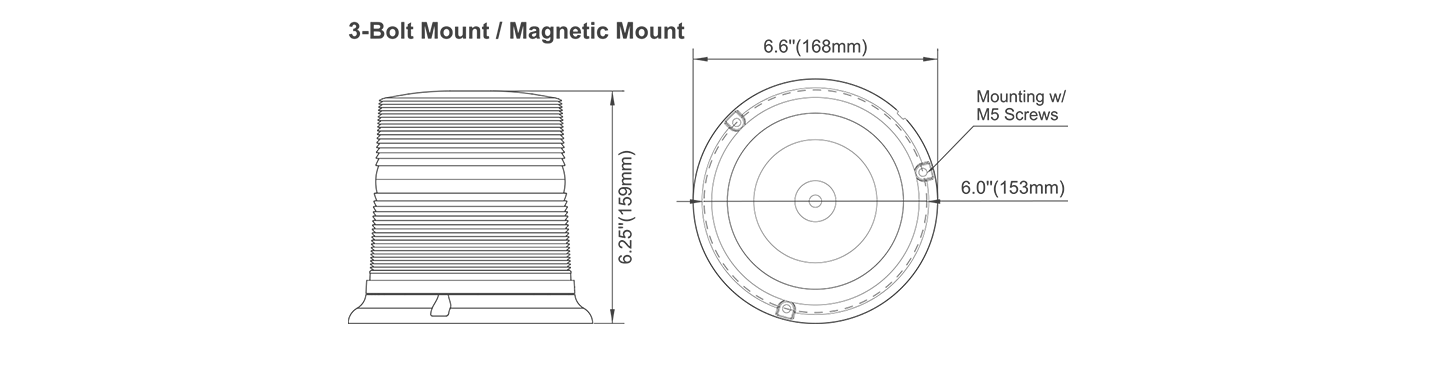

Dimensions

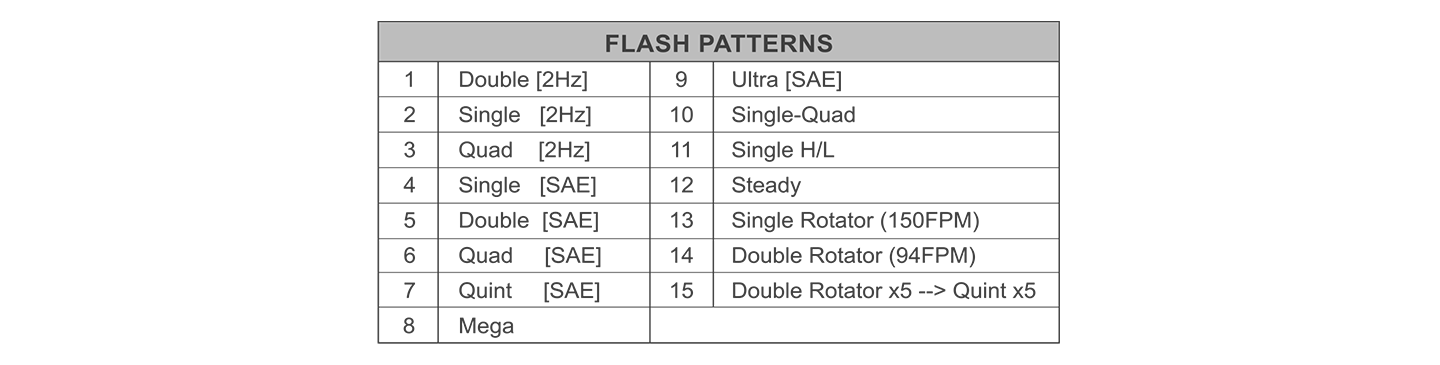

Pattern

Download

DOWNLOAD MAXP Beacon B15 Spreadsheet

DOWNLOAD MAXP Beacon B15-User Manual
