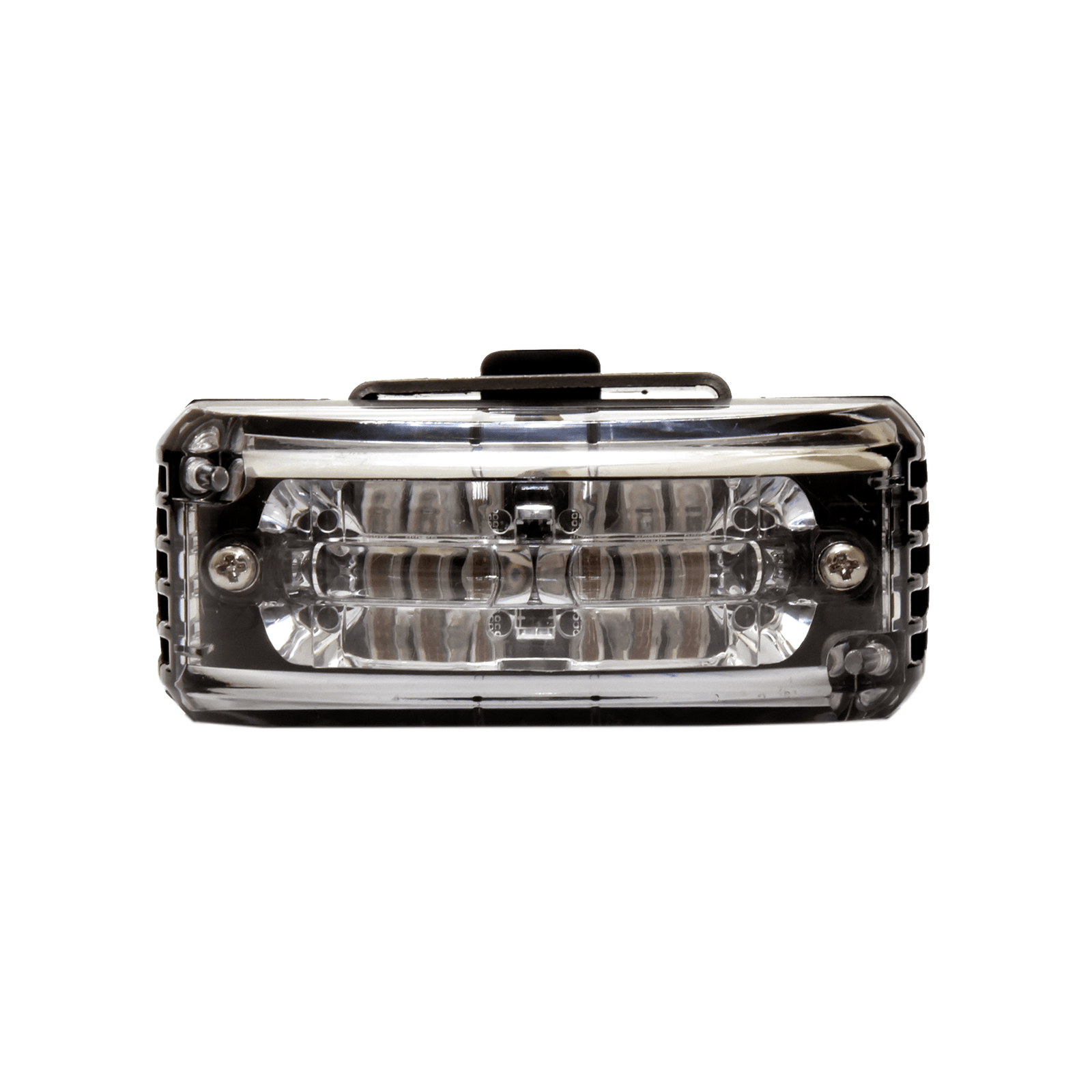

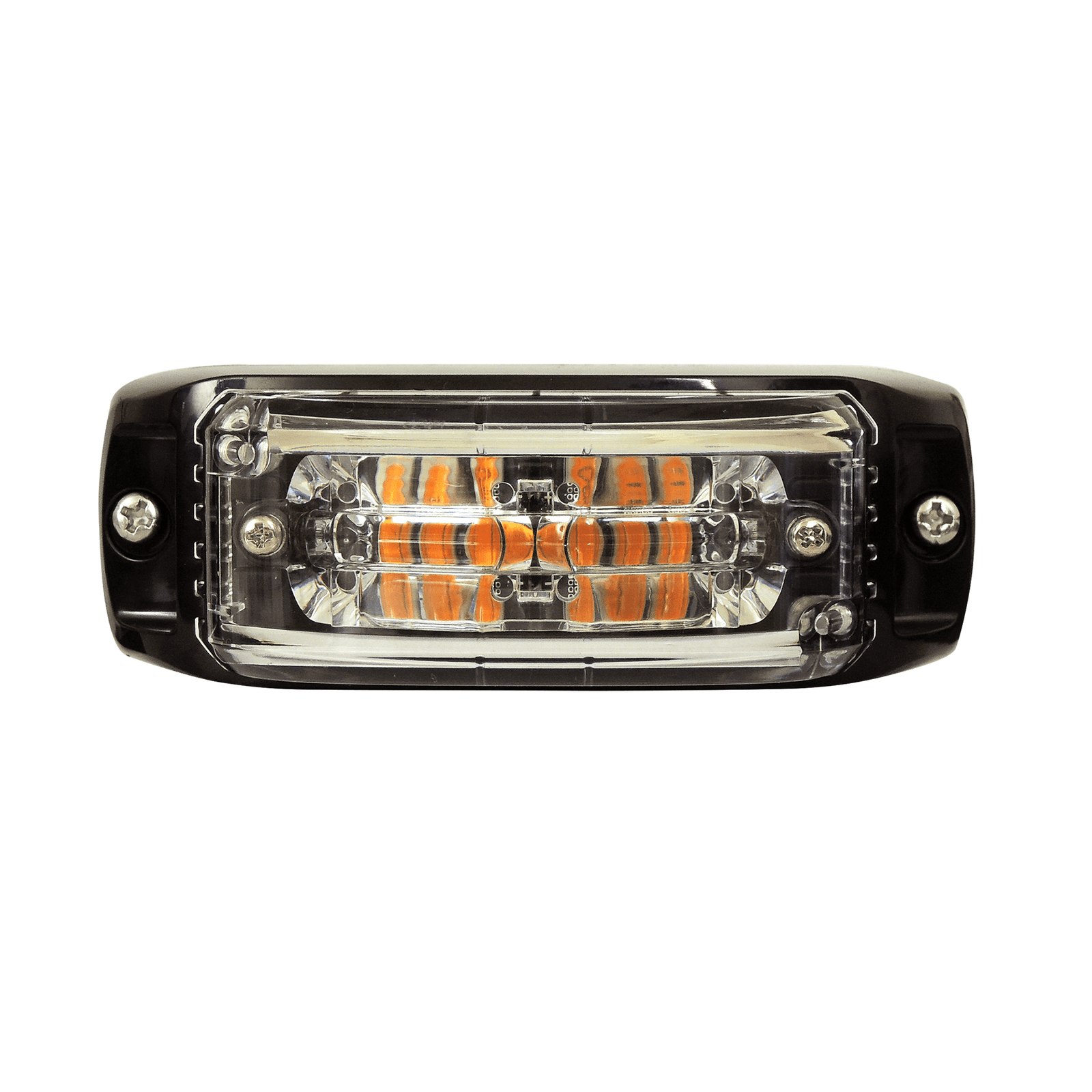

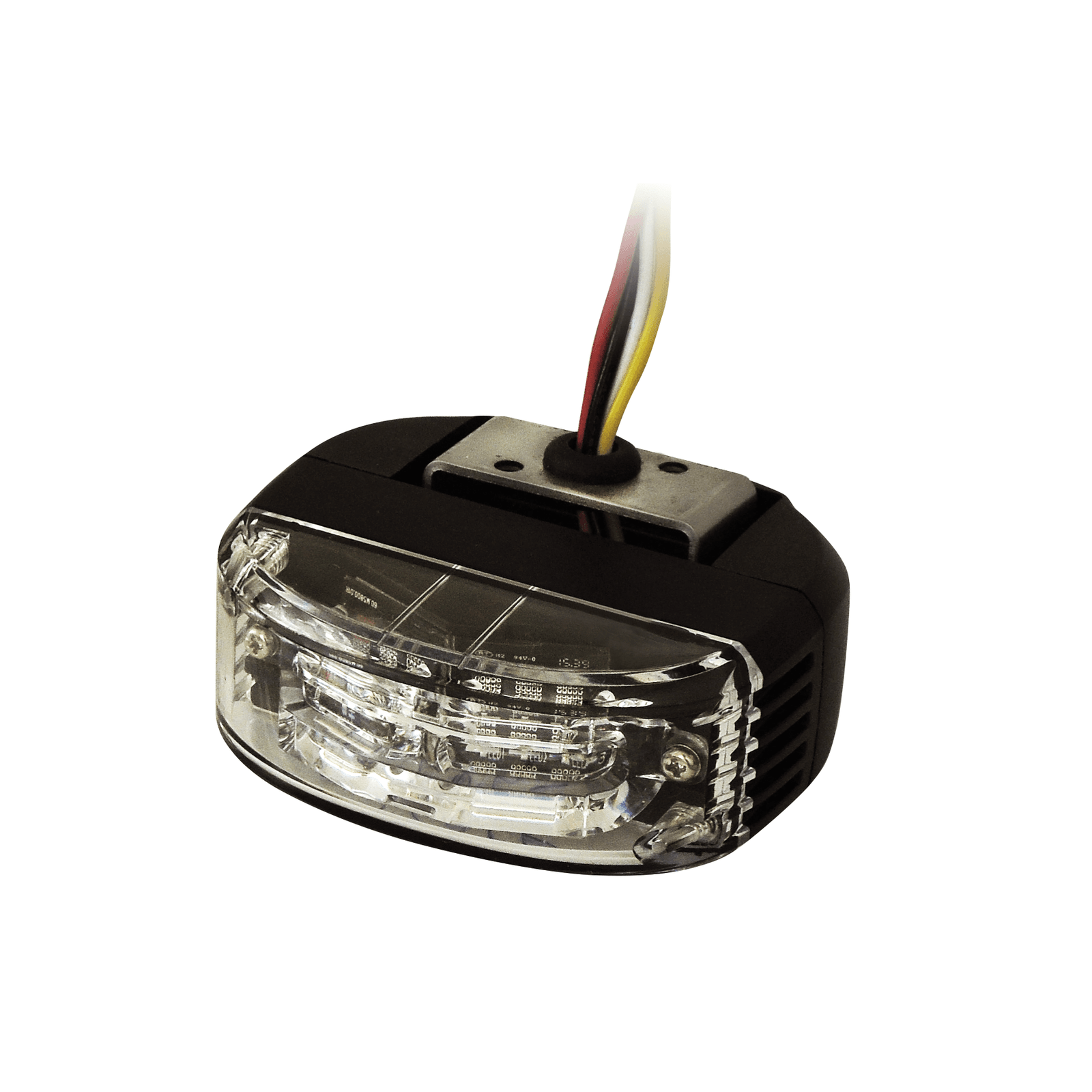

MaxP ARC LED AL6

Certifications & Standards
• SAE J595 & J845 (R,A,B,W),
• IPX7, ECE R65 (XA1, XB1), ECE R10.
Color Options
• LED Colour: RED, BLUE, AMBER,WHITE
• Lens Colour: Clear

<span class="ts-tooltip button-tooltip" data-title="Add to compare">Compare</span>

Details

True 180° wide-angle LED waming module.
Multi-Voltage Input 12-24VDC.
Built-in 12 selectable flash patterns.
LEDs rated to 100,000 hours of operation.
Non-volatile memory recalls last flash pattern used at power up.
Multiple units are synchronizable and can flash simultaneously or alternately.
Reverse polarity protection.
Weatherproof and vibration resistant design for external or internal use,
Aluminium base for heat dissipation.

Additional information

LED Color	RED, BLUE, AMBER, WHITE, GREEN, BLUE/AMBER, RED/BLUE, RED/WHITE, AMBER/WHITE, AMBER/GREEN
Lens Color	Clear, Amber

Specifications

Compliance:	SAE J595 & J845 (R,A,B,W), IPX7, ECE R65 (XA1, XB1), ECE R10.
LED Elements:	High-power LED x 6pcs
No. of Warning Patterns:	16 Flash Patterns
Operating Voltage:	12-24VDC Avg. Current: 0.57A @12VDC / 0.285A @24VDC (varies with flash pattern)
Max Current:	1.14A @12VDC / 0.57A @24VDC
Max. Power:	13.7 Watts

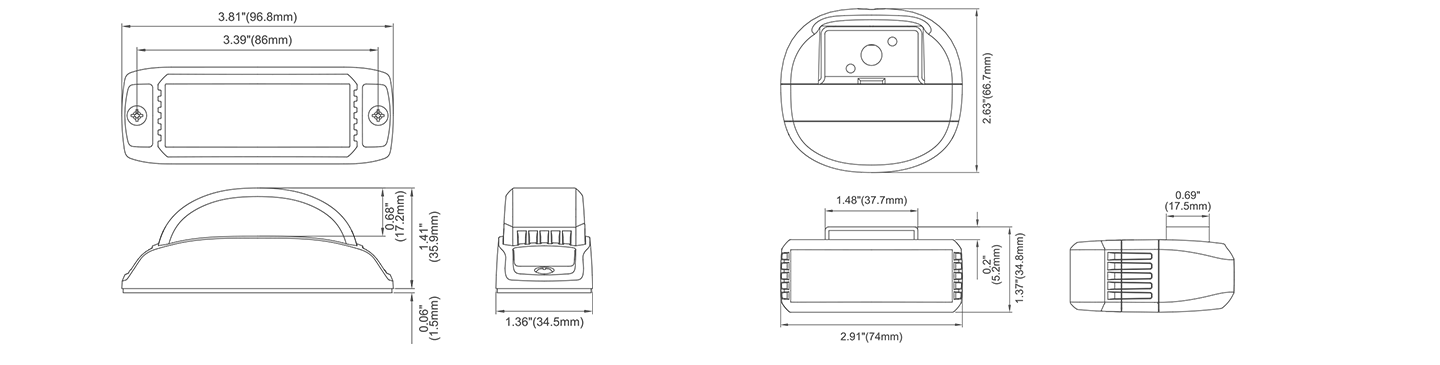

Dimensions

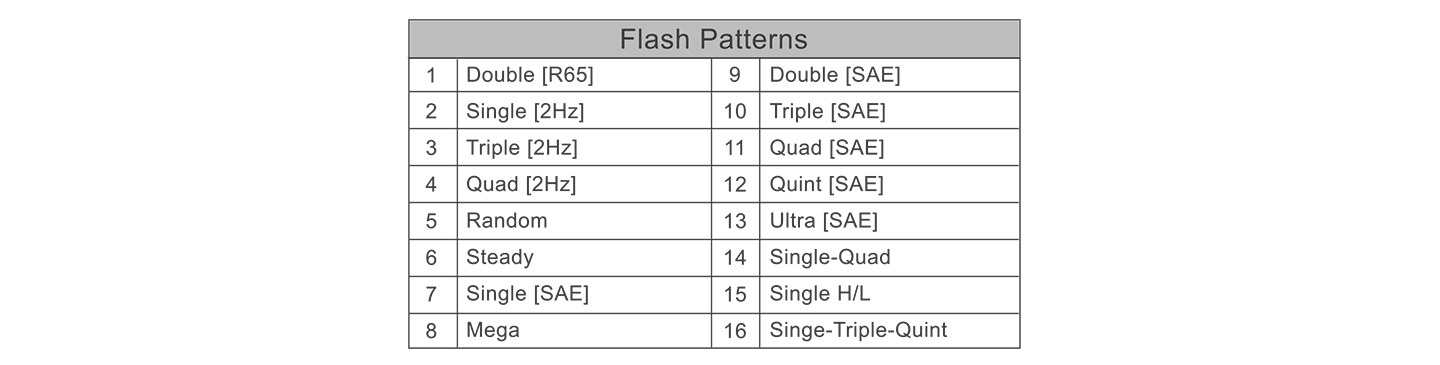

Pattern

Download

DOWNLOAD MAXP ARC LED AL6 Spreadsheet

DOWNLOAD MAXP ARC LED AL6-User Manual
